| COPPER NICKEL FORGED AND MACHINED FITTINGS |
| connectors in copper nickel |

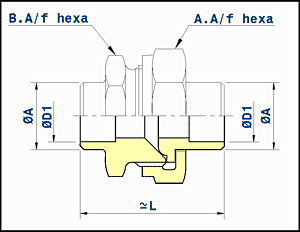

| union connector - socket welding or capillary ends |
| |
| Outside diameter of pipe | Theoretical | |||||
| ØD | ØA | L | A.A/f | B.A/f | weight | |
|
nominal inch |
ØD1 actual mm |
mm |
mm |
mm |
mm |
Kg/piece |
| 0.38 | 16 | 23 | 62 | 42 | 36 | 0.24 |
| 0.5 | 20 | 27 | 62 | 42 | 36 | 0.31 |
| 0.75 | 25 | 32 | 73 | 50 | 46 | 0.44 |
| 1 | 30 | 37 | 73 | 60 | 50 | 0.55 |
| 1.25 | 38 | 45 | 79 | 70 | 65 | 0.73 |
| 1.5 | 44.5 | 52 | 84 | 70 | 65 | 1.08 |
| 2 | 57 | 64 | 94 | 85 | 80 | 1.54 |
