| COPPER NICKEL FORGED AND MACHINED FITTINGS |
| olets in copper nickel |
| threadolets |
| |

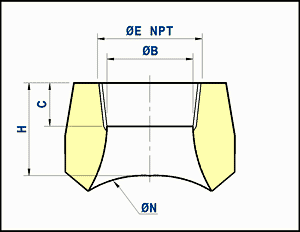

| Outside diameter of branch pipe | Outside diameter of header | Theoretical | |||||
| ØD | ØA | ØB | H | C | weight | ||
|
nominal inch |
actual (NPT) |
nominal inch |
actual mm |
(bore) mm |
mm |
mm |
Kg/piece |
| 1/2" | 1/2" | 3/4" to 1" 1/2 | 25 to 44.5 | 11.74 | 25.4 | 13.5 | 0.10 |
| 1/2" | 1/2" | 2" to 36" | 57 to 914 | 11.74 | 23.8 | 13.5 | 0.10 |
| 3/4" | 3/4" | 1" to 1" 1/2 | 30 to 44.5 | 15.58 | 26.9 | 14 | 0.13 |
| 3/4" | 3/4" | 2" to 36" | 57 to 914 | 15.58 | 25.4 | 14 | 0.13 |
| 1" | 1" | 1"1/4 to 1" 1/2 | 38 to 44.5 | 20.70 | 33.3 | 17.5 | 0.22 |
| 1" | 1" | 2" to 36" | 57 to 914 | 20.70 | 28.6 | 17.5 | 0.22 |
| 1" 1/4 | 1" 1/4 | 2" to 36" | 57 to 914 | 29.50 | 33.3 | 18 | 0.35 |
| 1" 1/4 | 1" 1/4 | 2" to 36" | 57 to 914 | 29.50 | 33.3 | 18 | 0.35 |
| 1" 1/2 | 1" 1/2 | 2" to 36" | 57 to 914 | 34.02 | 30.2 | 18.5 | 0.50 |
| 1" 1/2 | 1" 1/2 | 2" to 36" | 57 to 914 | 34.02 | 30.2 | 18.5 | 0.50 |
| 2" | 2" | 2" 1/2 to 36" | 76.1 to 914 | 42.82 | 38.1 | 19 | 0.90 |
| 2" | 2" | 2" 1/2 to 36" | 76.1 to 914 | 42.82 | 38.1 | 19 | 0.90 |
