COPPER NICKEL FORGED AND MACHINED FITTINGS
connectors in copper nickel
straight connector - socket welding or capillary ends x male thread
Printable version
PDF version

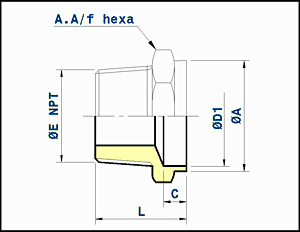

straight connector - socket welding or capillary ends x male thread

Outside diameter of pipe Theoretical
ØE ØA C L A.A/f weight
nominal
inch 		ØD1 x ØE
actual mm 		Thread
(NPT)
mm
mm
mm
mm
Kg/piece

0.38 x 0.5 16 x 20 1/2" 23 10 30 22 0.10
0.38 x 0.75 16 x 25 3/4" 23 10 33 30 0.13
0.38 x 1 16 x 30 1" 23 10 38 36 0.28
0.5 x 0.5 20 x 20 1/2" 27 10 33 27 0.11
0.5 x 0.75 20 x 25 3/4" 27 10 34 30 0.14
0.5 x 1 20 x 30 1" 27 10 39 36 0.25
0.5 x 1.25 20 x 38 1" 1/4 27 10 43 46 0.51
0.75 x 0.75 25 x 25 3/4" 32 13 35 32 0.15
0.75 x 1 25 x 30 1" 32 13 39 36 0.20
0.75 x 1.25 25 x 38 1" 1/4 32 13 43 46 0.46
0.75 x 1.5 25 x 44.5 1" 1/2 32 13 44 50 0.62
1 x 0.75 30 x 25 3/4" 37 13 38 41 0.24
1 x 1 30 x 30 1" 37 13 41 41 0.25
1 x 1.25 30 x 38 1" 1/4 37 13 44 46 0.39
1 x 1.5 30 x 44.5 1" 1/2 37 13 45 50 0.55
1.25 x 0.75 38 x 25 3/4" 45 13 44 46 0.30
1.25 x 1 38 x 30 1" 45 13 44 46 0.27
1.25 x 1.25 38 x 38 1" 1/4 45 13 45 46 0.32
1.25 x 1.5 38 x 44.5 1" 1/2 45 13 46 50 0.36
1.5 x 1 44.5 x 30 1" 52 13 47 55 0.40
1.5 x 1.25 44.5 x 38 1" 1/4 52 13 48 55 0.48
1.5 x 1.5 44.5 x 44.5 1" 1/2 52 13 48 55 0.48
1.5 x 2 44.5 x 57 2" 52 13 51 65 0.87
2 x 1.25 57 x 38 1" 1/4 64 16 51 65 0.68
2 x 1.5 57 x 44.5 1" 1/2 64 16 51 65 0.65
2 x 2 57 x 57 2" 64 16 51 65 0.57
2 x 2.5 57 x 76.1 2" 1/2 64 16 60 75 1.17
