COPPER NICKEL FORGED AND MACHINED FITTINGS
connectors in copper nickel
straight connector - socket welding or capillary ends x female thread
Printable version
PDF version

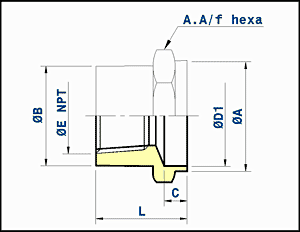

straight connector - socket welding or capillary ends x female thread

Outside diameter of pipe Theoretical
ØE ØA C ØB L A.A/f weight
nominal
inch 		ØD1 x ØE
actual mm 		Thread
(NPT)
mm
mm
mm
mm
mm
Kg/piece

3/8" x 1/2" 16 x 20 1/2" 23 10 27 31 27 0.07
3/8" x 3/4" 16 x 25 3/4" 23 10 32 33 32 0.1
3/8" x 1" 16 x 30 1" 23 10 40 38 41 0.2
1/2" x 1/2" 20 x 20 1/2" 27 10 27 28 27 0.08
1/2" x 3/4" 20 x 25 3/4" 27 10 32 32 32 0.11
1/2" x 1" 20 x 30 1" 27 10 40 37 41 0.31
1/2" x 1" 1/4 20 x 38 1" 1/4 27 10 49 40 50 0.29
3/4" x 3/4" 25 x 25 3/4" 32 13 32 31 32 0.1
3/4" x 1" 25 x 30 1" 32 13 40 35 41 0.2
3/4" x 1" 1/4 25 x 38 1" 1/4 32 13 49 39 50 0.29
3/4" x 1" 1/2 25 x 44.5 1" 1/2 32 13 55 41 55 0.32
1" x 3/4" 30 x 25 3/4" 37 13 32 31 41 0.23
1" x 1" 30 x 30 1" 37 13 40 35 41 0.19
1" x 1" 1/4 30 x 38 1" 1/4 37 13 49 38 50 0.28
1" x 1" 1/2 30 x 44.5 1" 1/2 37 13 55 40 55 0.3
1" 1/4 x 3/4" 38 x 25 3/4" 45 13 32 39 41 0.39
1" 1/4 x 1" 38 x 30 1" 45 13 40 39 41 0.31
1" 1/4 x 1" 1/4 38 x 38 1" 1/4 45 13 49 40 50 0.29
1" 1/4 x 1" 1/2 38 x 44.5 1" 1/2 45 13 55 42 55 0.32
1" 1/2 x 1" 44.5 x 30 1" 52 13 40 43 55 0.55
1" 1/2 x 1" 1/4 44.5 x 38 1" 1/4 52 13 49 39 55 0.5
1" 1/2 x 1" 1/2 44.5 x 44.5 1" 1/2 52 13 55 40 55 0.43
1" 1/2 x 2" 44.5 x 57 2" 52 13 70 43 70 0.65
2" x 1" 1/4 57 x 38 1" 1/4 64 16 49 45 65 0.8
2" x 1" 1/2 57 x 44.5 1" 1/2 64 16 55 40 65 0.73
2" x 2" 57 x 57 2" 64 16 70 40 70 0.65
2" x 2" 1/2 57 x 76.1 2" 1/2 64 16 85 49 85 0.97
