| COPPER NICKEL FLANGES |
| solid welding neck flange - DIN 2632 / EEMUA 234 / ANSI B16.5 in copper nickel |
| solid welding neck flange - 300 lbs - ANSI B16.5 |
| STANDARD : ANSI B 16.5 |
| |

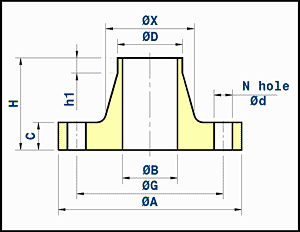

| Outside diameter of pipe | Drilling | Theo. | ||||||||
| ØD | ØA | H | C | ØX | ØR | ØG | N | Ød | weight | |
|
nominal inch |
actual mm |
mm |
mm |
mm |
mm |
mm |
mm |
bolt holes |
mm |
Kg/piece |
| 0.5 | 20 | 95.2 | 52.4 | 14.3 | 38.1 | 34.9 | 66.7 | 4 | 15.9 | 1.72 |
| 0.75 | 25 | 117.5 | 57.1 | 15.9 | 47.6 | 42.9 | 82.5 | 4 | 19 | 2.06 |
| 1 | 30 | 123.8 | 61.9 | 17.5 | 54.0 | 50.8 | 88.9 | 4 | 19 | 2.29 |
| 1.25 | 38 | 133.3 | 65.1 | 19.0 | 63.5 | 63.5 | 98.4 | 4 | 19 | 2.86 |
| 1.5 | 44.5 | 155.6 | 68.3 | 20.6 | 69.8 | 73.0 | 114.3 | 4 | 22.2 | 4.01 |
| 2 | 57 | 165.1 | 69.8 | 22.2 | 84.1 | 92.1 | 127.0 | 8 | 19 | 4.58 |
| 2.5 | 76.1 | 190.5 | 76.2 | 25.4 | 100.0 | 104.8 | 149.2 | 8 | 22.2 | 5.73 |
| 3 | 88.9 | 209.5 | 79.4 | 28.6 | 117.5 | 127.0 | 168.3 | 8 | 22.2 | 8.02 |
| 4 | 108 | 254.0 | 85.7 | 31.8 | 146.1 | 157.2 | 200.0 | 8 | 22.2 | 12.60 |
| 5 | 133 | 279.4 | 98.4 | 34.9 | 177.8 | 185.7 | 234.9 | 8 | 22.2 | 17.90 |
| 6 | 159 | 317.5 | 98.4 | 36.5 | 206.4 | 215.9 | 269.9 | 12 | 22.2 | 21.76 |
| 8 | 219.1 | 381.0 | 111.1 | 41.3 | 260.4 | 269.9 | 330.2 | 12 | 25.4 | 34.35 |
| 10 | 267 | 444.5 | 117.5 | 47.6 | 320.7 | 323.8 | 387.3 | 16 | 28.6 | 46.95 |
| 12 | 323.9 | 520.7 | 130.2 | 50.8 | 374.6 | 381.0 | 450.8 | 16 | 31.7 | 70.99 |
| 14 | 368 | 584.2 | 142.9 | 54.0 | 425.4 | 425.1 | 514.3 | 20 | 31.7 | 96.18 |
| 16 | 419.1 | 647.7 | 146.1 | 57.2 | 482.6 | 482.6 | 571.5 | 20 | 34.9 | 127.10 |
| 18 | 457.2 | 711.2 | 158.7 | 60.3 | 533.3 | 533.4 | 628.6 | 24 | 34.9 | 158.01 |
| 20 | 508 | 774.7 | 161.9 | 63.5 | 587.4 | 584.2 | 685.8 | 24 | 34.9 | 195.80 |
| 24 | 610 | 914.4 | 168.3 | 69.8 | 701.7 | 692.1 | 812.8 | 24 | 41.3 | 283.00 |
