| COPPER NICKEL FLANGES |
| Solid Socket Welding Flange - NAVSEA flanges - 810-4715319 In Copper Nickel MIL-C-24679 |
| solid socket welding flange - 250 PSI - NAVSEA 810-4715319 - FIG 5C |

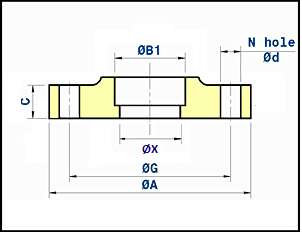

| STANDARD : NAVSEA FIG 5C DWG 810-4715319 |
| |
| Outside diameter of pipe | Drilling | Theo. | |||||||
| ØD | ØA | C | ØX | ØB1 | ØG | N | Ød | weight | |
|
nominal inch |
actual mm |
inch |
inch |
inch |
inch |
inch |
bolt holes |
inch |
Lbs/piece |
| 1/4 | 13.72 | 3.250 | 0.688 | 0.410 | 0.580 | 2.125 | 3 | 9/16 | 1.40 |
| 3/8 | 17.15 | 3.375 | 0.688 | 0.545 | 0.715 | 2.250 | 3 | 9/16 | 1.80 |
| 1/2 | 21.34 | 3.563 | 0.688 | 0.710 | 0.880 | 2.438 | 3 | 9/16 | 2.20 |
| 3/4 | 26.67 | 3.813 | 0.688 | 0.920 | 1.090 | 2.688 | 4 | 9/16 | 2.50 |
| 1 | 33.40 | 4.250 | 0.750 | 1.185 | 1.355 | 3.125 | 4 | 9/16 | 3.00 |
| 1-1/4 | 42.16 | 4.500 | 0.813 | 1.516 | 1.700 | 3.375 | 4 | 9/16 | 3.50 |
| 1-1/2 | 48.26 | 5.063 | 0.813 | 1.756 | 1.950 | 3.938 | 6 | 9/16 | 4.50 |
| 2 | 60.32 | 5.563 | 0.813 | 2.240 | 2.411 | 4.438 | 6 | 9/16 | 5.00 |
| 2-1/2 | 73.03 | 6.125 | 0.938 | 2.710 | 2.913 | 5.000 | 6 | 9/16 | 6.50 |
| 3 | 88.90 | 6.625 | 0.938 | 3.310 | 3.543 | 5.500 | 8 | 9/16 | 7.20 |
| 3-1/2 | 101.60 | 7.188 | 1.000 | 3.810 | 4.054 | 6.063 | 8 | 9/16 | 9.00 |
| 4 | 114.30 | 7.688 | 1.000 | 4.280 | 4.552 | 6.563 | 8 | 9/16 | 10.50 |
| 5 | 141.30 | 9.063 | 1.063 | 5.320 | 5.620 | 7.813 | 10 | 11/16 | 15.30 |
| 6 | 168.30 | 10.125 | 1.188 | 6.360 | 6.682 | 8.875 | 12 | 11/16 | 20.50 |
| 8 | 219.10 | 12.375 | 1.313 | 8.330 | 8.682 | 11.063 | 14 | 11/16 | 30.00 |
| 10 | 273.05 | 15.000 | 1.438 | 10.380 | 10.807 | 13.438 | 15 | 13/16 | 47.50 |
| 12 | 323.90 | 17.625 | 1.500 | 12.250 | 12.807 | 16.063 | 18 | 13/16 | 67.00 |
