| COPPER NICKEL FLANGES |
| Solid Socket Welding Flange - NAVSEA flanges - 810-4715319 In Copper Nickel MIL-C-24679 |
| solid socket welding flange - 200 PSI - NAVSEA 810-4715319 - FIG 2C |
| STANDARD : NAVSEA FIG 2C DWG 810-4715319 |
| |

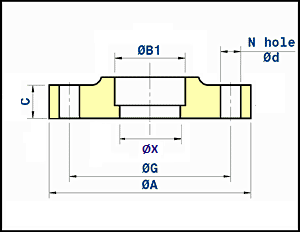

| Outside diameter of pipe | Drilling | Theo. | |||||||
| ØD | ØA | C | ØX | ØB1 | ØG | N | Ød | weight | |
|
nominal inch |
actual mm |
inch |
inch |
inch |
inch |
inch |
bolt holes |
inch |
Lbs/piece |
| 1-1/2 | 48.26 | 5.000 | 0.438 | 1.696 | 1.905 | 3.875 | 4 | 5/8 | 2.50 |
| 2 | 60.32 | 6.000 | 0.500 | 2.067 | 2.380 | 4.750 | 4 | 3/4 | 4.00 |
| 2-1/2 | 73.03 | 7.000 | 0.563 | 2.469 | 2.880 | 5.500 | 4 | 3/4 | 6.00 |
| 3 | 88.9 | 7.500 | 0.625 | 3.068 | 3.505 | 6.000 | 4 | 3/4 | 8.00 |
| 3-1/2 | 101.6 | 8.500 | 0.688 | 3.548 | 4.005 | 7.000 | 8 | 3/4 | 10.00 |
| 4 | 114.3 | 9.000 | 0.688 | 4.026 | 4.505 | 7.500 | 8 | 3/4 | 11.50 |
| 5 | 141.3 | 10.000 | 0.750 | 5.047 | 5.568 | 8.500 | 8 | 7/8 | 14.50 |
| 6 | 168.2 | 11.000 | 0.813 | 6.065 | 6.630 | 9.500 | 8 | 7/8 | 17.50 |
| 8 | 219.1 | 13.500 | 0.938 | 7.981 | 8.630 | 11.750 | 8 | 7/8 | 30.50 |
| 10 | 273.05 | 16.000 | 1.000 | 10.020 | 10.755 | 14.250 | 12 | 1 | 42.00 |
| 12 | 323.9 | 19.000 | 1.063 | 11.938 | 12.755 | 17.000 | 12 | 1 | 68.50 |
