| COPPER NICKEL FLANGES |
| solid slip on flange - DIN 86033 / EEMUA 234 / ANSI B16.5 in copper nickel |
| solid slip on flange - 150 lbs - ANSI B16.5 |

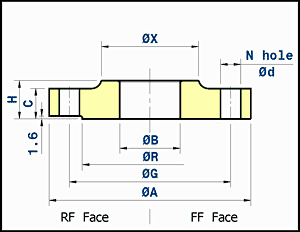

| STANDARD : ANSI B 16.5 |
| |
| Outside diameter of pipe | Drilling | Theo. | |||||||||
| ØD | ØA | H | C | ØX | ØR | ØB | ØG | N | Ød | weight | |
|
nominal inch |
actual mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
bolt holes |
mm |
Kg/piece |
| 0.5 | 20 | 88.9 | 15.9 | 11.1 | 30.2 | 34.9 | 20.2 | 60.3 | 4 | 15.9 | 0.90 |
| 0.75 | 25 | 98.4 | 15.9 | 12.7 | 38.1 | 42.9 | 25.2 | 69.8 | 4 | 15.9 | 1.10 |
| 1 | 30 | 107.9 | 17.5 | 14.3 | 49.2 | 50.8 | 30.2 | 79.4 | 4 | 15.9 | 1.20 |
| 1.25 | 38 | 117.5 | 20.6 | 15.9 | 58.7 | 63.5 | 38.3 | 88.9 | 4 | 15.9 | 1.50 |
| 1.5 | 44.5 | 127.0 | 22.2 | 17.5 | 65.1 | 73.0 | 44.8 | 98.4 | 4 | 15.9 | 1.60 |
| 2 | 57 | 152.4 | 25.4 | 19.1 | 77.8 | 92.1 | 57.4 | 120.6 | 4 | 19.0 | 2.70 |
| 2.5 | 76.1 | 177.8 | 28.6 | 22.2 | 90.5 | 104.8 | 76.5 | 139.7 | 4 | 19.0 | 4.10 |
| 3 | 88.9 | 190.5 | 30.2 | 23.8 | 107.9 | 127.0 | 89.4 | 152.4 | 4 | 19.0 | 4.10 |
| 4 | 108 | 228.6 | 33.3 | 23.8 | 134.9 | 157.2 | 108.5 | 190.5 | 8 | 19.0 | 7.00 |
| 5 | 133 | 254.0 | 36.5 | 23.8 | 163.5 | 185.7 | 133.8 | 215.9 | 8 | 22.2 | 8.00 |
| 6 | 159 | 279.4 | 39.7 | 25.4 | 192.1 | 215.9 | 159.8 | 241.3 | 8 | 22.2 | 9.90 |
| 8 | 219.1 | 342.9 | 44.4 | 28.6 | 246.1 | 269.9 | 220.3 | 298.4 | 8 | 22.2 | 15.70 |
| 10 | 267 | 406.4 | 49.2 | 30.2 | 304.8 | 323.8 | 268.4 | 361.9 | 12 | 25.4 | 22.80 |
| 12 | 323.9 | 482.6 | 55.6 | 31.8 | 365.1 | 381.0 | 325.4 | 431.8 | 12 | 25.4 | 33.90 |
| 14 | 368 | 533.4 | 57.1 | 34.9 | 400.0 | 425.1 | 369.5 | 476.2 | 12 | 28.6 | 45.00 |
| 16 | 419.1 | 596.9 | 63.5 | 36.5 | 457.2 | 482.6 | 420.5 | 539.7 | 16 | 28.6 | 49.00 |
| 18 | 457.2 | 635.0 | 68.3 | 39.7 | 504.8 | 533.4 | 458.7 | 577.8 | 16 | 31.7 | 63.00 |
| 20 | 508 | 698.5 | 73.0 | 42.9 | 558.8 | 584.2 | 509.5 | 635.0 | 20 | 31.7 | 81.50 |
| 24 | 610 | 812.8 | 82.5 | 47.6 | 663.6 | 692.1 | 611.5 | 749.3 | 20 | 34.9 | 105.55 |
