COPPER NICKEL FLANGES
solid slip on flange - DIN 86033 / EEMUA 234 / ANSI B16.5 in copper nickel
solid slip on flange - 10 bar - DIN 86033
STANDARD : DIN 86033
Printable version
PDF version

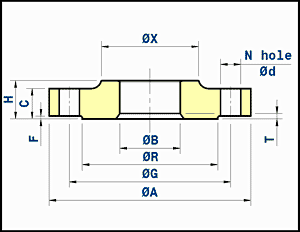

solid slip on flange - 10 bar - DIN 86033

Outside diameter of pipe Drilling Theo.
ØD ØA H C ØX ØR ØB F T ØG N Ød weight
nominal
inch 		actual
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm 		bolt
holes
mm
Kg/piece

0.375 16 90 18 12 26 40 16.20 2 60 4 14 0.52
0.5 20 95 18 12 30 45 20.20 2 65 4 14 0.57
0.75 25 105 18 12 35 58 25.20 2 75 4 14 0.71
1 30 115 18 12 40 68 30.20 2 85 4 14 0.86
1.25 38 140 20 14 49 78 38.25 2 100 4 18 1.47
1.5 44.5 150 20 14 56 88 44.75 3 110 4 18 1.60
2 57 165 22 16 69 102 57.30 3 125 4 18 2.20
2.5 76.1 185 22 16 88 122 76.30 3 145 4 18 2.66
3 88.9 200 24 18 101 138 89.40 3 160 8 18 3.32
4 108 220 28 20 120 158 108.40 5 180 8 18 4.31
5 133 250 28 20 146 188 133.65 5 7 210 8 18 5.37
6 159 285 30 22 172 212 159.65 5 7 240 8 23 6.37
7 193.7 315 32 22 209 242 195.00 5 7 270 8 23 7.22
8 219.1 340 32 24 234 268 220.00 5 7 295 8 23 9.12
10 267 395 34 26 284 320 268.20 6 7 350 12 23 12.10
12 323.9 445 36 26 343 370 325.35 6 7 400 12 23 13.70
14 368 505 38 28 389 430 369.35 6 7 460 16 23 19.30
16 419.1 565 40 28 442 482 420.50 6 7 515 16 27 23.20
18 457.2 615 42 28 482 530 458.50 6 7 565 20 27 27.90
20 508 670 47 31 535 585 509.50 7 8 620 20 27 35.00
24 610 780 49 31 640 685 612.00 8 8 725 20 30 42.90
