| COPPER NICKEL FORGED AND MACHINED FITTINGS |
| olets in copper nickel |
| sockolets |
| |

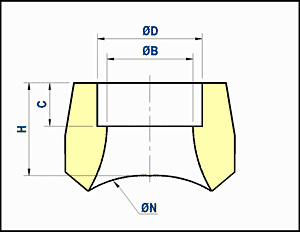

| Outside diameter of branch pipe | Outside diameter of header | Theoretical | |||||
| ØD | ØN | ØB | H | C | weight | ||
|
nominal inch |
actual mm |
nominal inch |
actual mm |
mm |
mm |
mm |
Kg/piece |
| 0.5 | 16 | 0.75 to 1.5 | 25 to 44.5 | 12.0 | 25.4 | 10 | 0.10 |
| 0.5 | 16 | 2 to 36 | 57 to 914 | 12.0 | 23.8 | 10 | 0.10 |
| 0.75 | 25 | 1 to 1.5 | 30 to 44.5 | 21.0 | 26.9 | 13 | 0.13 |
| 0.75 | 25 | 2 to 36 | 57 to 914 | 21.0 | 25.4 | 13 | 0.13 |
| 1 | 30 | 1.25 to 1.5 | 38 to 44.5 | 25.0 | 33.3 | 13 | 0.22 |
| 1 | 30 | 2 to 36 | 57 to 914 | 25.0 | 28.6 | 13 | 0.22 |
| 1.25 | 38 | 2 to 36 | 57 to 914 | 33.0 | 33.3 | 13 | 0.35 |
| 1.25 | 38 | 2 to 36 | 57 to 914 | 33.0 | 33.3 | 13 | 0.35 |
| 1.5 | 44.5 | 2 to 36 | 57 to 914 | 39.5 | 30.2 | 13 | 0.50 |
| 1.5 | 44.5 | 2 to 36 | 57 to 914 | 39.5 | 30.2 | 13 | 0.50 |
| 2 | 57 | 2.5 to 36 | 76.1 to 914 | 52.0 | 38.1 | 16 | 0.90 |
| 2 | 57 | 2.5 to 36 | 76.1 to 914 | 52.0 | 38.1 | 16 | 0.90 |
