| COPPER NICKEL FORGED AND MACHINED FITTINGS |

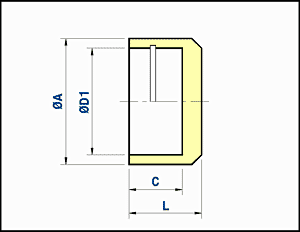

| end caps in copper nickel |
| socket welding or capillary ends |
| |
| Outside diameter of pipe | Theoretical | ||||
| ØA | L | C | weight | ||
|
nominal inch |
actual mm |
mm |
mm |
mm |
Kg/piece |
| 0.38 | 16 | 23 | 14.0 | 10 | 0.04 |
| 0.5 | 20 | 27 | 14.5 | 10 | 0.05 |
| 0.75 | 25 | 32 | 15.0 | 13 | 0.07 |
| 1 | 30 | 37 | 16.0 | 13 | 0.08 |
| 1.25 | 38 | 45 | 20.0 | 13 | 0.13 |
| 1.5 | 44.5 | 52 | 20.5 | 13 | 0.19 |
| 2 | 57 | 64 | 20.5 | 16 | 0.22 |
