COPPER NICKEL FLANGES
composite weld neck - inner flange - DIN 86037 / EEMUA 234 in copper nickel
short inner flange - 16 bar - EEMUA 234
STANDARD : EEMUA Pub. N234
Printable version
PDF version

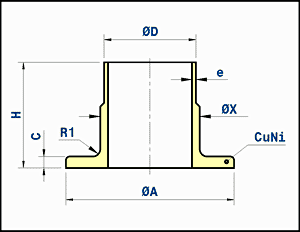

short inner flange - 16 bar - EEMUA 234

Outside diameter of pipe Wall Theo.
ØD thickness ØA H C ØX R1 weight
nominal
inch
actual
mm
e
mm

mm

mm

mm

mm

mm

Kg/piece

0.5 16 2 40 35 4 18 2 0.07
0.75 25 2 50 40 5 27 3 0.16
1 30 2.5 60 40 5 32 4 0.20
1.25 38 2.5 70 40 5 40 4 0.25
1.5 44.5 2.5 80 45 6 46.5 4 0.42
2 57 2.5 99 45 6 59 5 0.50
2.5 76.1 2.5 120 45 6 78 5 0.67
3 88.9 2.5 130 50 7 91 5 0.86
4 108 3 158 50 7 110 5 1.18
6 159 3 212 50 9 161.5 5 2.20
8 219.1 4 270 50 9 222 5 3.20
10 267 4.5 320 50 9 270 5 3.90
12 323.9 5.5 370 50 11 327 7 6.50
14 368 6.5 430 50 11 371 7 7.45
16 419.1 7 482 50 12 422 7 9.20
18 457.2 8 530 50 12 460 7 11.45
20 508 8.5 585 50 12 511 7 13.40
24 610 10.5 685 60 14 613 9 20.75
28 711 12 800 60 19 719 9 33.35
32 813 13.5 905 60 20.5 821 9 42.25
36 914 15.5 1000 60 22 922 9 49.35
