| COPPER NICKEL PIPES |
| us standards for copper nickel pipes |
| schedule 5S - ANSI / ASME B36.19 UNS C706 / C715 |
| |

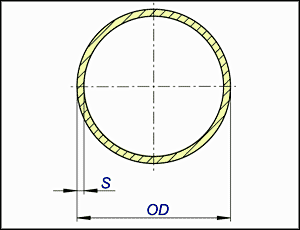

| Outside diameter of pipe | Wall thickness | Theoretical weight | ||||
| ØD | ||||||
|
nominal inch |
actual inch |
actual mm |
actual inch |
actual mm |
Lb/Ft | Kg/m |
| 0.5 | 0.840 | 21.34 | 0.065 | 1.65 | 0.54 | 0.80 |
| 0.75 | 1.050 | 26.67 | 0.065 | 1.65 | 0.69 | 1.03 |
| 1 | 1.315 | 33.40 | 0.065 | 1.65 | 0.87 | 1.30 |
| 1.25 | 1.660 | 42.16 | 0.065 | 1.65 | 1.11 | 1.65 |
| 1.5 | 1.900 | 48.27 | 0.065 | 1.65 | 1.28 | 1.91 |
| 2 | 2.375 | 60.32 | 0.065 | 1.65 | 1.61 | 2.40 |
| 2.5 | 2.875 | 73.03 | 0.083 | 2.11 | 2.48 | 3.69 |
| 3 | 3.500 | 88.90 | 0.083 | 2.11 | 3.03 | 4.51 |
| 3.5 | 4.000 | 101.60 | 0.083 | 2.11 | 3.48 | 5.18 |
| 4 | 4.500 | 114.30 | 0.083 | 2.11 | 3.92 | 5.84 |
| 5 | 5.563 | 141.30 | 0.109 | 2.77 | 6.36 | 9.47 |
| 6 | 6.625 | 168.30 | 0.109 | 2.77 | 7.60 | 11.32 |
| 8 | 8.625 | 219.10 | 0.109 | 2.77 | 9.93 | 14.79 |
| 10 | 10.750 | 273.05 | 0.134 | 3.40 | 15.19 | 22.63 |
| 12 | 12.750 | 323.90 | 0.156 | 3.96 | 20.98 | 31.25 |
