| COPPER NICKEL PIPES |
| us standards for copper nickel pipes |
| schedule 10S - ANSI / ASME B36.19 UNS C706 / C715 |
| |

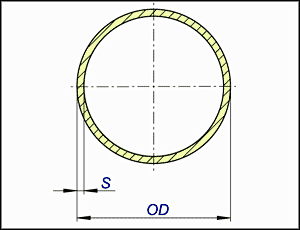

| Outside diameter of pipe | Wall thickness | Theoretical weight | ||||
| ØD | ||||||
|
nominal inch |
actual inch |
actual mm |
actual inch |
actual mm |
Lb/Ft | Kg/m |
| 0.125 | 0.405 | 10.29 | 0.049 | 1.24 | 0.19 | 0.28 |
| 0.25 | 0.540 | 13.72 | 0.065 | 1.65 | 0.33 | 0.49 |
| 0.38 | 0.675 | 17.15 | 0.065 | 1.65 | 0.42 | 0.63 |
| 0.5 | 0.840 | 21.34 | 0.083 | 2.11 | 0.67 | 1.00 |
| 0.75 | 1.050 | 26.67 | 0.083 | 2.11 | 0.86 | 1.28 |
| 1 | 1.315 | 33.40 | 0.109 | 2.77 | 1.40 | 2.09 |
| 1.25 | 1.660 | 42.16 | 0.109 | 2.77 | 1.81 | 2.70 |
| 1.5 | 1.900 | 48.27 | 0.109 | 2.77 | 2.09 | 3.11 |
| 2 | 2.375 | 60.32 | 0.109 | 2.77 | 2.64 | 3.93 |
| 2.5 | 2.875 | 73.03 | 0.120 | 3.05 | 3.53 | 5.26 |
| 3 | 3.500 | 88.90 | 0.120 | 3.05 | 4.33 | 6.45 |
| 3.5 | 4.000 | 101.60 | 0.120 | 3.05 | 4.97 | 7.40 |
| 4 | 4.500 | 114.30 | 0.120 | 3.05 | 5.61 | 8.36 |
| 5 | 5.563 | 141.30 | 0.134 | 3.40 | 7.77 | 11.57 |
| 6 | 6.625 | 168.30 | 0.134 | 3.40 | 9.29 | 13.84 |
| 8 | 8.625 | 219.10 | 0.148 | 3.76 | 13.40 | 19.96 |
| 10 | 10.750 | 273.05 | 0.165 | 4.19 | 18.65 | 27.78 |
| 12 | 12.750 | 323.90 | 0.180 | 4.57 | 24.17 | 36.00 |
