COPPER NICKEL FORGED AND MACHINED FITTINGS
couplings in copper nickel
reducing coupling - socket welding or capillary ends
Printable version
PDF version

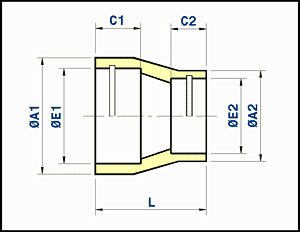

reducing coupling - socket welding or capillary ends

Outside diameter of pipe Theoretical
ØD ØA1 ØE1 C1 ØA2 ØE2 C2 L weight
nominal
inch 		actual
mm
mm
mm
mm
mm
mm
mm
mm
Kg/piece

0.5 x 0.125 20 x 16 27 20.1 10 23 16.1 10 27 0.07
0.75 x 0.125 25 x 16 32 25.1 13 23 16.1 10 33 0.07
0.75 x 0.5 25 x 20 32 25.1 13 27 20.1 10 27 0.08
1 x 0.125 30 x 16 37 30.1 13 23 16.1 10 35 0.09
1 x 0.5 30 x 20 37 30.1 13 27 20.1 10 31 0.08
1 x 0.75 30 x 25 37 30.1 13 32 25.1 13 28 0.08
1.25 x 0.125 38 x 16 45 38.1 13 23 16.1 10 45 0.18
1.25 x 0.5 38 x 20 45 38.1 13 27 20.1 10 41 0.17
1.25 x 0.75 38 x 25 45 38.1 13 32 25.1 13 36 0.16
1.25 x 1 38 x 30 45 38.1 13 37 30.1 13 33 0.15
1.5 x 0.125 44.5 x 16 52 44.6 13 23 16.1 10 51 0.20
1.5 x 0.5 44.5 x 20 52 44.6 13 27 20.1 10 47 0.21
1.5 x 0.75 44.5 x 25 52 44.6 13 32 25.1 13 42 0.22
1.5 x 1 44.5 x 30 52 44.6 13 37 30.1 13 39 0.23
1.5 x 1.25 44.5 x 38 52 44.6 13 45 38.1 13 36 0.24
2 x 0.125 57 x 16 64 57.3 16 23 16.1 10 62 0.28
2 x 0.5 57 x 20 64 57.3 16 27 20.1 10 58 0.27
2 x 0.75 57 x 25 64 57.3 16 32 25.1 13 54 0.26
2 x 1 57 x 30 64 57.3 16 37 30.1 13 50 0.25
2 x 1.25 57 x 38 64 57.3 16 45 38.1 13 47 0.24
2 x 1.5 57 x 44.5 64 57.3 16 52 44.6 13 41 0.23
