COPPER NICKEL FLANGES
bulkhead pieces - DIN 86068 in copper nickel and carbon steel
pieces type B - 10 bar - DIN 86068
STANDARD : DIN 86 068 NP 10
Printable version
PDF version

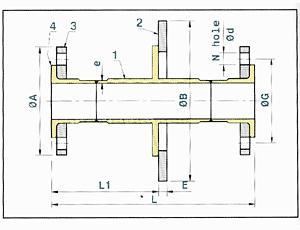

pieces type B - 10 bar - DIN 86068

Outside diameter of pipe Drilling Theo.
ØD E ØB L1 ØA L e ØG N Ød weight
nominal
inch 		actual
mm
mm
mm
mm
mm
mm
mm
mm 		bolt
holes
mm
Kg/piece

0.75 25 14 151 100 105 200 2 75 4 14 4.05
