COPPER NICKEL FLANGES
bulkhead pieces - DIN 86068 in copper nickel and carbon steel
pieces type A
Printable version
PDF version
pieces type A

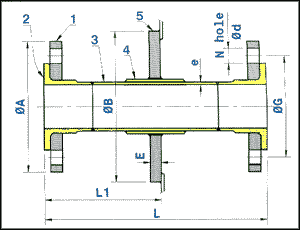

Outside diameter of pipe Drilling Theo.
ØD PN E ØB L1 ØA L e ØG N Ød weight
nominal
inch 		actual
mm
mm
mm
mm
mm
mm
mm
mm
mm 		bolt
holes
mm
Kg/piece

0.75 25 16 14 150 100 105 200 2 75 4 14 4.1
1 30 16 14 160 100 115 200 2 85 4 14 5.1
1.25 38 16 14 185 110 140 220 2 100 4 18 7.1
1.5 44.5 16 14 205 110 150 220 2 110 4 18 8.5
2 57 16 14 220 115 165 230 2 125 4 18 10
2.5 76.1 16 14 240 120 185 240 3 145 4 18 12.5
3 88.9 16 14 255 130 200 260 2.5 160 8 18 15.1
4 108 16 14 275 130 220 260 3 180 8 18 17.6
5 133 16 16 305 130 250 260 3.5 210 8 18 22.7
6 159 16 16 340 135 285 270 3.5 240 8 22 29.1
7 193.7 16 16 370 140 315 280 4 270 8 22 36.3
8 219.1 10 16 395 140 340 280 4 295 8 22 38.7
10 267 10 16 460 150 395 300 5 350 12 22 53.6
12 323.9 10 20 525 160 445 320 5 400 12 22 71.6
14 368 10 20 585 170 505 340 6 460 16 22 91.6
16 419.1 10 20 645 180 565 360 8 515 16 26 120.4
