COPPER NICKEL FLANGES
composite weld neck flange - outer flange - DIN 86037 / EEMUA 234 / ANSI B16.5 in carbon steel A37 or A105
outer flange - 150 lbs - EEMUA 234 - galvanized or epoxy coated
STANDARD : EEMUA Pub. N234
Printable version
PDF version
outer flange - 150 lbs - EEMUA 234 - galvanized or epoxy coated

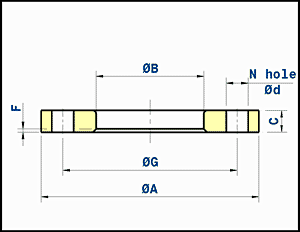

Outside diameter of pipe Drilling Theo.
ØD ØA C ØB F ØG N Ød weight
nominal
inch
actual
mm

mm

mm

mm

mm

mm

mm

mm

Kg/piece

0.5 16 89 14 19 2 60.3 4 15.9 0.60
0.75 25 98 14 28 3 69.8 4 15.9 0.80
1 30 108 14 33 3 79.4 4 15.9 0.90
1.25 38 117 14 41 3 88.9 4 15.9 1.10
1.5 44.5 127 14 48 3 98.4 4 15.9 1.20
2 57 152 18 62 3 120.6 4 19.0 2.10
2.5 76.1 178 18 81 3 139.7 4 19.0 2.60
3 88.9 190 19 94 3 152.4 4 19.0 2.90
4 108 229 24 113 3 190.5 8 19.0 5.90
6 159 279 27 164 4 241.3 8 22.2 8.40
8 219.1 343 31 225 5 298.4 8 22.2 12.35
10 267 406 38 273 5 362.0 12 25.4 19.70
12 323.9 483 41 330 7 431.8 12 25.4 32.20
14 368 533 45 374 7 476.2 12 28.6 38.20
16 419.1 597 51 426 7 539.8 16 28.6 52.15
18 457.2 635 52 465 7 577.8 16 31.8 54.05
20 508 698 58 517 7 635.0 20 31.8 73.20
24 610 813 71 618 9 749.3 20 34.9 114.25
28 711 927 81 727 9 864.0 28 34.9 151.80
32 813 1060 95 829 9 978.0 28 41.1 233.50
36 914 1168 105 931 9 1086.0 32 41.1 294.10
