| COPPER NICKEL FLANGES |
| composite weld neck flange - outer flange - DIN 86037 / EEMUA 234 / ANSI B16.5 in carbon steel A37 or A105 |
| outer flange - 150 lbs - ANSI B16.5 - galvanized or epoxy coated |
| STANDARD : ANSI B 16.5 |
| |
| Outside diameter of pipe | Drilling | Theo. | |||||||||

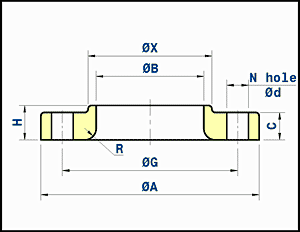

| ØD | ØA | H | C | ØX | ØB | R | ØG | N | Ød | weight | |
|
nominal inch |
actual mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
Kg/piece |
| 0.5 | 20 | 88.9 | 15.9 | 11.1 | 30.2 | 22 | 3.2 | 60.3 | 4 | 15.9 | 0.80 |
| 0.75 | 25 | 98.4 | 15.9 | 12.7 | 38.1 | 28 | 3.2 | 69.8 | 4 | 15.9 | 0.90 |
| 1 | 30 | 107.9 | 17.5 | 14.3 | 49.2 | 33 | 3.2 | 79.4 | 4 | 15.9 | 1.00 |
| 1.25 | 38 | 117.5 | 20.6 | 15.9 | 58.8 | 41 | 4.8 | 88.9 | 4 | 15.9 | 1.30 |
| 1.5 | 44.5 | 127.0 | 22.2 | 17.5 | 65.1 | 48 | 6.4 | 98.4 | 4 | 15.9 | 1.40 |
| 2 | 57 | 152.4 | 25.4 | 19.0 | 77.8 | 62 | 7.9 | 120.6 | 4 | 19.0 | 2.30 |
| 2.5 | 76.1 | 177.8 | 28.6 | 22.2 | 90.5 | 81 | 7.9 | 139.7 | 4 | 19.0 | 3.20 |
| 3 | 88.9 | 190.5 | 30.2 | 23.8 | 107.9 | 94 | 9.5 | 152.4 | 4 | 19.0 | 3.60 |
| 4 | 108 | 228.6 | 33.3 | 23.8 | 134.9 | 113 | 11.1 | 190.5 | 8 | 19.0 | 5.90 |
| 5 | 133 | 254.0 | 36.5 | 23.8 | 163.5 | 138 | 11.1 | 215.9 | 8 | 22.2 | 6.80 |
| 6 | 159 | 279.4 | 39.7 | 25.4 | 192.1 | 164 | 12.70 | 241.3 | 8 | 22.2 | 8.60 |
| 8 | 219.1 | 342.9 | 44.4 | 28.6 | 246.1 | 225 | 12.70 | 298.4 | 8 | 22.2 | 13.60 |
| 10 | 267 | 406.4 | 49.2 | 30.2 | 304.8 | 273 | 12.70 | 361.9 | 12 | 25.4 | 19.50 |
| 12 | 323.9 | 482.6 | 55.6 | 31.7 | 365.1 | 330 | 12.70 | 431.8 | 12 | 25.4 | 29.00 |
| 14 | 368 | 533.4 | 79.4 | 34.9 | 400.0 | 374 | 12.70 | 476.2 | 12 | 28.6 | 45.00 |
| 16 | 419.1 | 596.9 | 87.3 | 36.5 | 457.2 | 426 | 12.70 | 539.7 | 16 | 28.6 | 58.00 |
| 18 | 457.2 | 635.0 | 96.8 | 39.7 | 504.8 | 465 | 12.70 | 577.8 | 16 | 31.7 | 66.00 |
| 20 | 508 | 698.5 | 103.2 | 42.9 | 558.8 | 517 | 12.70 | 635.0 | 20 | 31.7 | 84.00 |
| 24 | 610 | 812.8 | 111.1 | 47.6 | 663.6 | 618 | 12.70 | 749.3 | 20 | 34.9 | 118.00 |
