| COPPER NICKEL FLANGES |
| composite weld neck flange - outer flange - DIN 86037 / EEMUA 234 / ANSI B16.5 in carbon steel A37 or A105 |
| outer flange - 10 bar - DIN 86037 - galvanized or epoxy coated |
| STANDARD : ISO NP10 - DIN 86037 |
| |

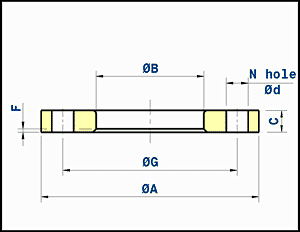

| Outside diameter of pipe | Drilling | Theo. | |||||||
| ØD | ØA | C | ØB | F | ØG | N | Ød | weight | |
|
nominal inch |
actual mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
Kg/piece |
| 0.75 | 25 | 105 | 14 | 28 | 3 | 75 | 4 | 14 | 0.80 |
| 1 | 30 | 115 | 16 | 33 | 4 | 85 | 4 | 14 | 1.10 |
| 1.25 | 38 | 140 | 16 | 42 | 4 | 100 | 4 | 18 | 1.65 |
| 1.5 | 44.5 | 150 | 16 | 50 | 4 | 110 | 4 | 18 | 1.85 |
| 2 | 57 | 165 | 16 | 62 | 5 | 125 | 4 | 18 | 2.20 |
| 2.5 | 76.1 | 185 | 16 | 81 | 5 | 145 | 4 | 18 | 2.65 |
| 3 | 88.9 | 200 | 18 | 94 | 5 | 160 | 8 | 18 | 3.30 |
| 4 | 108 | 220 | 18 | 113 | 5 | 180 | 8 | 18 | 3.65 |
| 5 | 133 | 250 | 18 | 138 | 5 | 210 | 8 | 18 | 4.55 |
| 6 | 159 | 285 | 18 | 164 | 5 | 240 | 8 | 22 | 5.60 |
| 7 | 193.7 | 315 | 22 | 200 | 5 | 270 | 8 | 22 | 7.5 |
| 8 | 219.1 | 340 | 20 | 225 | 5 | 295 | 8 | 22 | 7.45 |
| 10 | 267 | 395 | 22 | 273 | 5 | 350 | 12 | 22 | 10.30 |
| 12 | 323.9 | 445 | 24 | 331 | 7 | 400 | 12 | 22 | 12.00 |
| 14 | 368 | 505 | 24 | 375 | 7 | 460 | 16 | 22 | 16.00 |
| 16 | 419.1 | 565 | 26 | 426 | 7 | 515 | 16 | 26 | 20.00 |
| 18 | 457.2 | 615 | 28 | 465 | 7 | 565 | 20 | 26 | 25.00 |
| 20 | 508 | 670 | 30 | 517 | 7 | 620 | 20 | 26 | 31.00 |
| 24 | 610 | 780 | 32 | 618 | 9 | 725 | 20 | 30 | 40 |
