COPPER NICKEL FORGED AND MACHINED FITTINGS
reducing inserts in copper nickel
male x capillary ends
Printable version
PDF version
male x capillary ends

Outside diameter of pipe Theoretical

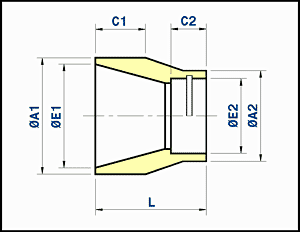

ØD ØA1 ØE1 C1 ØA2 ØE2 C2 L weight
nominal
inch 		actual
mm
mm
mm
mm
mm
mm
mm
mm
Kg/piece

0.5 x 0.38 20 x 16 20 18 12 23 16.1 10 23 0.03
