| COPPER NICKEL FORGED AND MACHINED FITTINGS |
| connectors in copper nickel |

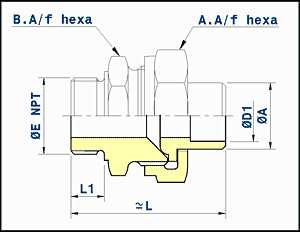

| male union connector - socket welding or capillary ends x male thread |
| |
| Outside diameter of pipe | Theoretical | |||||||
| ØE | ØA | L1 | L | A.A/f | B.A/f | weight | ||
|
nominal inch |
ØD1 actual mm |
Thread (NPT) |
mm |
mm |
mm |
mm |
mm |
Kg/piece |
| 0.38 | 16 | 3/4" | 23 | 19 | 74 | 42 | 36 | 0.35 |
| 0.5 | 20 | 3/4" | 27 | 19 | 79 | 42 | 36 | 0.47 |
| 0.75 | 25 | 1" | 32 | 21 | 82 | 50 | 46 | 0.55 |
| 1 | 30 | 1" 1/4 | 37 | 23 | 89 | 60 | 50 | 0.73 |
| 1.25 | 38 | 1" 1/2 | 45 | 25 | 97 | 70 | 65 | 1.05 |
| 1.5 | 44.5 | 1" 3/4 | 52 | 25.5 | 100 | 70 | 65 | 1.55 |
| 2 | 57 | 2" | 64 | 27.5 | 109 | 85 | 80 | 2.00 |
