| COPPER NICKEL FORGED AND MACHINED FITTINGS |
| connectors in copper nickel |

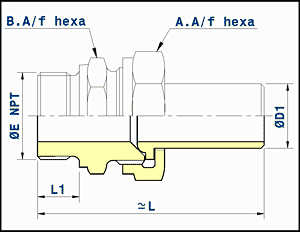

| male union connector - butt welding ends x male thread |
| |
| Outside diameter of pipe | Theoretical | ||||||
| ØE | L1 | L | A.A/f | B.A/f | weight | ||
|
nominal inch |
ØD1 actual mm |
Thread (NPT) |
mm |
mm |
mm |
mm |
Kg/piece |
| 3/8" | 16 | 3/4" | 19 | 84 | 42 | 36 | 0.37 |
| 1/2" | 20 | 3/4" | 19 | 92 | 42 | 36 | 0.50 |
| 3/4" | 25 | 1" | 21 | 95 | 50 | 46 | 0.60 |
| 1" | 30 | 1" 1/4 | 23 | 100 | 60 | 50 | 0.80 |
| 1" 1/4 | 38 | 1" 1/2 | 25 | 106 | 70 | 65 | 1.15 |
| 1" 1/2 | 44.5 | 1" 3/4 | 25.5 | 115 | 70 | 65 | 1.65 |
| 2" | 57 | 2" | 27.5 | 130 | 85 | 80 | 2.15 |
