COPPER NICKEL FLANGES
composite weld neck - inner flange - DIN 86037 / EEMUA 234 in copper nickel
long inner flange - 16 bar - EEMUA 234
STANDARD : EEMUA Pub. N°234
Printable version
PDF version

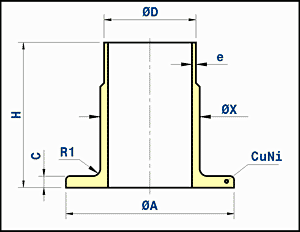

long inner flange - 16 bar - EEMUA 234

Outside diameter of pipe Wall Theo.
ØD thickness ØA H C ØX R1 weight
nominal
inch 		actual
mm 		e
mm
mm
mm
mm
mm
mm
Kg/piece

0.5 16 2 40 51 4 18 2 0.09
0.75 25 2 50 51 5 27 3 0.19
1 30 2.5 60 51 5 32 4 0.23
1.25 38 2.5 70 51 5 40 4 0.29
1.5 44.5 2.5 80 51 6 46.5 4 0.44
2 57 2.5 99 64 6 59 5 0.61
2.5 76.1 2.5 120 64 6 78 5 0.80
3 88.9 2.5 130 64 7 91 5 0.97
4 108 3 158 76 7 110 5 1.50
6 159 3 212 89 9 161.5 5 2.90
8 219.1 4 270 102 9 222 5 5.10
10 267 4.5 320 127 9 270 5 8.90
12 323.9 5.5 370 152 11 327 7 13.80
14 368 6.5 430 152 11 371 7 16.60
16 419.1 7 482 152 12 422 7 20.25
18 457.2 8 530 152 12 460 7 23.60
20 508 8.5 585 152 12 511 7 28.65
24 610 10.5 685 152 14 613 9 39.25
28 711 12 800 190 19 719 9 75.30
32 813 13.5 905 190 20.5 827 9 94.60
36 914 15.5 1000 190 22 922 9 115.55
