| COPPER NICKEL FLANGES |
| composite weld neck - inner flange - DIN 86037 / EEMUA 234 in copper nickel |
| inner flange - 14 bar - DIN 86037 |
| STANDARD : DIN 86037 |
| |

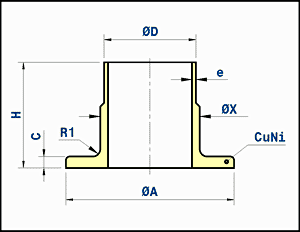

| Outside diameter of pipe | Wall | Theo. | ||||||
| ØD | thickness | ØA | H | C | ØX | R1 | weight | |
|
nominal inch |
actual mm |
e mm |
mm |
mm |
mm |
mm |
mm |
Kg/piece |
| 3 | 88.9 | 2.5 | 138 | 50 | 7 | 91 | 5 | 0.90 |
| 5 | 133 | 3 | 188 | 50 | 7 | 135.5 | 5 | 1.55 |
| 6 | 159 | 3 | 212 | 50 | 9 | 161.5 | 5 | 2.10 |
| 7 | 193.7 | 3.5 | 242 | 50 | 9 | 197 | 5 | 2.55 |
| 8 | 219.1 | 3.5 | 268 | 50 | 9 | 222 | 5 | 2.90 |
| 10 | 267 | 4 | 320 | 50 | 9 | 270 | 5 | 3.80 |
| 12 | 323.9 | 5 | 370 | 50 | 11 | 327 | 7 | 5.40 |
| 14 | 368 | 5.5 | 430 | 50 | 11 | 371 | 7 | 6.95 |
| 16 | 419.1 | 6 | 482 | 50 | 12 | 422 | 7 | 8.65 |
| 18 | 457.2 | 6 | 530 | 50 | 12 | 460 | 7 | 10.15 |
| 20 | 508 | 6.5 | 585 | 50 | 12 | 511 | 7 | 11.90 |
| 24 | 610 | 8 | 685 | 60 | 14 | 613 | 9 | 17.65 |
