| COPPER NICKEL FORGED AND MACHINED FITTINGS |
| couplings in copper nickel |

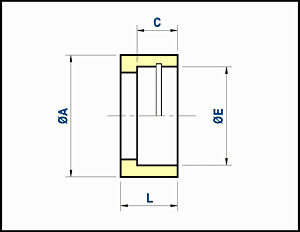

| half coupling - socket welding or capillary ends |
| |
| Outside diameter of pipe | Theoretical | |||||
| ØD | ØA | L | ØE | C | weight | |
|
nominal inch |
actual mm |
mm |
mm |
mm |
mm |
Kg/piece |
| 0.38 | 16 | 23 | 13 | 16.1 | 10 | 0.02 |
| 0.5 | 20 | 27 | 13 | 20.1 | 10 | 0.03 |
| 0.75 | 25 | 32 | 17 | 25.1 | 13 | 0.04 |
| 1 | 30 | 37 | 17 | 30.1 | 13 | 0.05 |
| 1.25 | 38 | 45 | 17 | 38.1 | 13 | 0.06 |
| 1.5 | 44.5 | 52 | 18 | 44.6 | 13 | 0.08 |
| 2 | 57 | 64 | 22 | 57.3 | 16 | 0.11 |
