| COPPER NICKEL FORGED AND MACHINED FITTINGS |
| connectors in copper nickel |

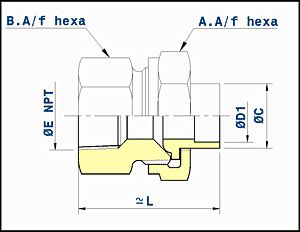

| female union connector - socket welding or capillary ends x female thread |
| |
| Outside diameter of pipe | Theoretical | ||||||
| ØE | ØC | L | A.A/f | B.A/f | weight | ||
|
nominal inch |
ØD1 actual mm |
Thread (NPT) |
mm |
mm |
mm |
mm |
Kg/piece |
| 0.38 | 16 | 1/2" | 23 | 50 | 42 | 27 | 0.25 |
| 0.5 | 20 | 1/2" | 27 | 51 | 42 | 27 | 0.31 |
| 0.75 | 25 | 3/4" | 32 | 56 | 50 | 32 | 0.43 |
| 1 | 30 | 1" | 37 | 60 | 60 | 41 | 0.45 |
| 1.25 | 38 | 1" 1/4 | 45 | 68 | 70 | 50 | 0.72 |
| 1.5 | 44.5 | 1" 1/2 | 52 | 70 | 70 | 55 | 0.85 |
| 2 | 57 | 2" | 64 | 76 | 85 | 70 | 1.35 |
