| COPPER NICKEL FORGED AND MACHINED FITTINGS |
| connectors in copper nickel |

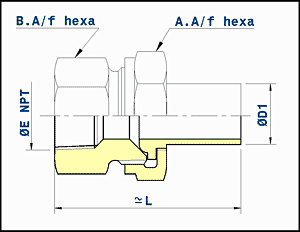

| female union connector - butt welding ends x female thread |
| |
| Outside diameter of pipe | Theoretical | |||||
| ØE | L | A.A/f | B.A/f | weight | ||
|
nominal inch |
ØD1 actual mm |
Thread (NPT) |
mm |
mm |
mm |
Kg/piece |
| 0.38 | 16 | 1/2" | 60 | 42 | 27 | 0.25 |
| 0.5 | 20 | 1/2" | 61 | 42 | 27 | 0.28 |
| 0.75 | 25 | 3/4" | 69 | 50 | 32 | 0.38 |
| 1 | 30 | 1" | 73 | 60 | 41 | 0.41 |
| 1.25 | 38 | 1" 1/4 | 87 | 70 | 50 | 0.68 |
| 1.5 | 44.5 | 1" 1/2 | 87 | 70 | 55 | 0.77 |
| 2 | 57 | 2" | 96 | 85 | 70 | 1.05 |
