| COPPER NICKEL FORGED AND MACHINED FITTINGS |

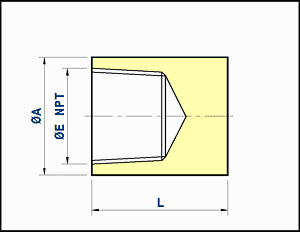

| end caps in copper nickel |
| female threaded |
| |
| Outside diameter of pipe | Theoretical | ||||
| ØE | ØA | L | weight | ||
|
nominal inch |
actual mm |
Thread (NPT) |
mm |
mm |
Kg/piece |
| 0.5 | 16 | 1/2" | 29 | 32 | 0.17 |
| 0.75 | 25 | 3/4" | 35 | 37 | 0.30 |
| 1 | 30 | 1" | 44 | 38 | 0.55 |
| 1.25 | 38 | 1" 1/4 | 57 | 41 | 0.95 |
| 1.5 | 44.5 | 1" 1/2 | 64 | 41 | 1.10 |
| 2 | 57 | 2" | 76 | 42 | 1.85 |
