| COPPER NICKEL PIPES |
| us navy standards for copper nickel pipes |
| class 50 - MIL-T-16420K C706 / C715 Type I or II Grade 1 or 2 |
| |

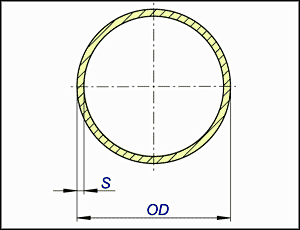

| Outside diameter of pipe | Minimum wall thickness | Theoretical weight | ||||
| ØD | ||||||
|
nominal inch |
actual inch |
actual mm |
actual inch |
actual mm |
Lb/Ft | Kg/m |
| 14 | 14.000 | 355.60 | 0.165 | 4.19 | 27.78 | 41.35 |
| 16 | 16.000 | 406.40 | 0.165 | 4.19 | 31.80 | 47.32 |
| 18 | 18.000 | 457.20 | 0.180 | 4.57 | 39.03 | 58.10 |
| 20 | 20.000 | 508.20 | 0.180 | 4.57 | 43.41 | 64.62 |
| 22 | 22.000 | 558.80 | 0.180 | 4.57 | 47.80 | 71.12 |
| 22.750 | 577.85 | 0.180 | 4.57 | 49.50 | 73.57 | |
| 30 | 30.000 | 762.00 | 0.250 | 6.35 | 90.54 | 134.77 |
| 40 | 40.000 | 1016.00 | 0.312 | 7.92 | 150.70 | 224.19 |
