| COPPER NICKEL FORGED AND MACHINED FITTINGS |
| adaptors in copper nickel |

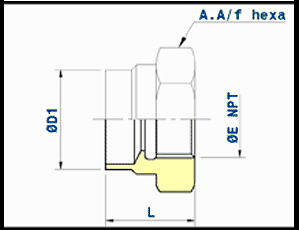

| butt welding ends x female thread |
| |
| Outside diameter of pipe | Theoretical | ||||||||
| ØE | L | A.A/f | weight | ||||||
|
nominal inch |
ØD1 x ØE actual mm |
Thread (NPT) |
mm |
mm |
Kg/piece |
||||
| 0.38 | x | 0.5 | 16 | x | 20 | 1/2" | 34 | 27 | 0.07 |
| 0.5 | x | 0.75 | 20 | x | 25 | 3/4" | 37 | 32 | 0.1 |
| 0.75 | x | 0.75 | 25 | x | 25 | 3/4" | 34 | 32 | 0.15 |
| 0.75 | x | 1 | 25 | x | 30 | 1" | 41 | 41 | 0.19 |
| 1 | x | 1 | 30 | x | 30 | 1" | 39 | 41 | 0.25 |
| 1.25 | x | 1.5 | 38 | x | 44.5 | 1" 1/2 | 50 | 55 | 0.35 |
| 1.5 | x | 1.5 | 44.5 | x | 44.5 | 1" 1/2 | 47 | 55 | 0.40 |
| 2 | x | 1.5 | 57 | x | 44.5 | 1" 1/2 | 47 | 70 | 0.5 |
| 2 | x | 2 | 57 | x | 57 | 2" | 51 | 70 | 0.5 |
