| COPPER NICKEL FORGED AND MACHINED FITTINGS |
|

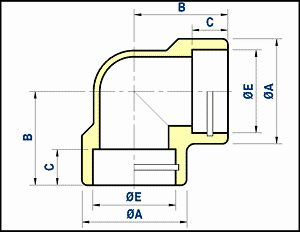

forged elbows in copper nickel socket welding or capillary ends |
| 90° |
| |
| Outside diameter of pipe | Theoretical | |||||
| ØD | ØA | B | C | ØE | weight | |
|
nominal inch |
actual mm |
mm |
mm |
mm |
mm |
Kg/piece |
| 0.38 | 16 | 26.05 | 20 | 10 | 16.1 | 0.07 |
| 0.5 | 20 | 26.05 | 25 | 10 | 20.1 | 0.10 |
| 0.75 | 25 | 33.00 | 29 | 13 | 25.1 | 0.26 |
| 1 | 30 | 38.00 | 34 | 13 | 30.1 | 0.32 |
| 1.25 | 38 | 56.00 | 44 | 13 | 38.1 | 0.59 |
| 1.5 | 44.5 | 56.00 | 44 | 13 | 44.6 | 1.01 |
| 2 | 57 | 65.00 | 50 | 16 | 57.3 | 1.31 |
