COPPER NICKEL BUTT WELD FITTINGS
elbows - long radius - DIN 86090 / EEMUA 234 in copper nickel
90° - 20 bar - EEMUA 234
STANDARD : EEMUA Pub. N° 234
Printable version
PDF version

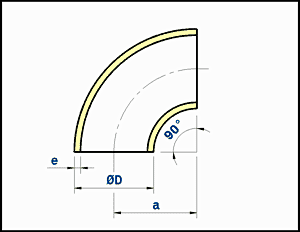

90° - 20 bar - EEMUA 234

Outside diameter of pipe Wall Radius Theoretical
ØD thickness weight
nominal
inch 		actual
mm 		e
mm 		a
mm
Kg/piece

1 30 2.5 38 0.12
1.25 38 2.5 48 0.18
1.5 44.5 2.5 57 0.26
2 57 2.5 76 0.46
2.5 76.1 2.5 95 0.76
3 88.9 2.5 114 1.08
4 108 3 152 2.10
6 159 3.5 229 5.48
8 219.1 4.5 305 12.94
10 267 5.5 381 24.08
12 323.9 7 457 44.60
14 368 8 533 67.60
16 419.1 9 610 99.00
18 457.2 9.5 686 128.50
20 508 11 762 183.60
24 610 13 914 313.30
28 711 15 1067 490.80
32 813 17 1219 727.70
36 914 19 1372 1026.26
