COPPER NICKEL BUTT WELD FITTINGS
elbows - short radius - Ext. from DIN 86090 in copper nickel
90 - 14 bar
STANDARD : Extrapolated from DIN 86090
Printable version
PDF version

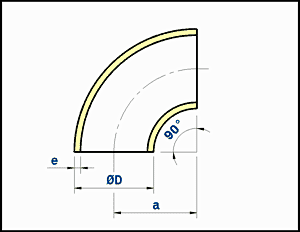

90 - 14 bar

Outside diameter of pipe Wall Radius Theoretical
ØD thickness weight
nominal
inch
actual
mm
e
mm
a
mm

Kg/piece

3 88.9 2.5 82.5 0.80
5 133 3 125 2.16
6 159 3 150 3.12
7 193.7 3.5 180 5.32
8 219.1 3.5 210 7.00
10 267 4 255 11.74
12 323.9 5 305 21.50
14 368 5.5 352.5 31.08
16 419.1 6 400 43.74
18 457.2 6 455 61.20
20 508 6.5 505 84.30
24 610 8 610 130.90
