| COPPER NICKEL FORGED AND MACHINED FITTINGS |
|

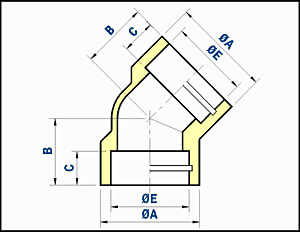

forged elbows in copper nickel socket welding or capillary ends |
| 45° |
| |
| Outside diameter of pipe | Theoretical | |||||
| ØD | ØA | B | C | ØE | weight | |
|
nominal inch |
actual mm |
mm |
mm |
mm |
mm |
Kg/piece |
| 0.38 | 16 | 26.05 | 19.0 | 10 | 16.1 | 0.07 |
| 0.5 | 20 | 26.05 | 19.0 | 10 | 20.1 | 0.10 |
| 0.75 | 25 | 33.00 | 22.5 | 13 | 25.1 | 0.26 |
| 1 | 30 | 38.00 | 25.5 | 13 | 30.1 | 0.41 |
| 1.25 | 38 | 63.50 | 36.0 | 13 | 38.1 | 0.64 |
| 1.5 | 44.5 | 63.50 | 36.0 | 13 | 44.6 | 0.69 |
| 2 | 57 | 63.50 | 36.0 | 16 | 57.3 | 1.09 |
