COPPER NICKEL BUTT WELD FITTINGS
elbows - long radius - DIN 86090 / EEMUA 234 in copper nickel
45° - 16 bar - EEMUA 234
STANDARD : EEMUA Pub. N° 234
Printable version
PDF version

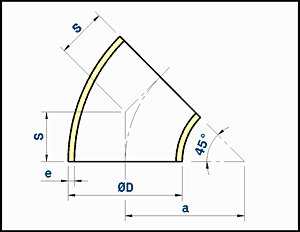

45° - 16 bar - EEMUA 234

Outside diameter of pipe Wall Radius Theoretical
ØD thickness weight
nominal
inch 		actual
mm 		e
mm 		a
mm 		s
mm
Kg/piece

1 30 2.5 38 22 0.06
1.25 38 2.5 48 25 0.09
1.5 44.5 2.5 57 29 0.13
2 57 2.5 76 35 0.23
2.5 76.1 2.5 95 44 0.38
3 88.9 2.5 114 51 0.54
4 108 3 152 64 1.05
6 159 3 229 95 2.35
8 219.1 4 305 127 5.75
10 267 4.5 381 159 9.85
12 323.9 5.5 457 190 17.53
14 368 6.5 533 222 27.46
16 419.1 7 610 254 38.50
18 457.2 8 686 286 54.10
20 508 8.5 762 318 70.93
24 610 10.5 914 381 126.42
28 711 12 1067 438 196.30
32 813 13.5 1219 502 288.00
36 914 15.5 1372 565 418.60
