| COPPER NICKEL BUTT WELD FITTINGS |
| elbows - long radius - DIN 86090 / EEMUA 234 in copper nickel |

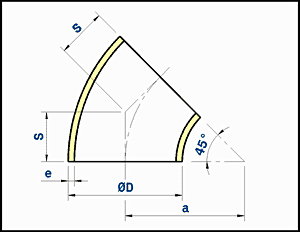

| 45° - 14 bar - DIN 86090 |
| STANDARD : DIN 86090 |
| |
| Outside diameter of pipe | Wall | Radius | Theoretical | ||
| ØD | thickness | weight | |||
|
nominal inch |
actual mm |
e mm |
a mm |
s mm |
Kg/piece |
| 3 | 88.9 | 2.5 | 114.5 | 47 | 0.54 |
| 5 | 133 | 3 | 181 | 75 | 1.55 |
| 6 | 159 | 3 | 216 | 89 | 2.22 |
| 7 | 193.7 | 3.5 | 270 | 112 | 3.94 |
| 8 | 219.1 | 3.5 | 305 | 126 | 5.04 |
| 10 | 267 | 4 | 378 | 157 | 8.73 |
| 12 | 323.9 | 5 | 457 | 189 | 16.00 |
| 14 | 368 | 5.5 | 533.5 | 221 | 23.37 |
| 16 | 419.1 | 6 | 609.5 | 252 | 33.20 |
| 18 | 457.2 | 6 | 686 | 284 | 46.05 |
| 20 | 508 | 6.5 | 762 | 316 | 62.85 |
| 24 | 610 | 8 | 915 | 379 | 97.00 |
