COPPER NICKEL BUTT WELD FITTINGS

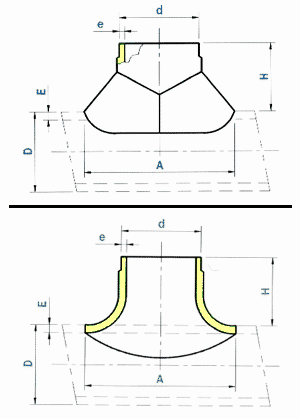

saddles - DIN 86087 / EEMUA 234 in copper nickel
20 bar - EEMUA 234
STANDARD : EEMUA Pub. N 234
Printable version
PDF version
20 bar - EEMUA 234

Outside diameter of pipe Wall Centre Theoretical
ØD x Ød ØD x Ød thickness to face weight
nominal
inch
actual
mm
E
mm
e
mm
H
mm
A
mm

Kg/piece

1.25 x 1.25 38 x 38 2.5 2.5 35 64 0.18
1.5 x 1.25 44.5 x 38 2.5 2.5 35 64 0.23
1.5 x 1.5 44.5 x 44.5 2.5 2.5 35 74 0.25
2 x 1.25 57 x 38 2.5 2.5 35 64 0.25
2 x 1.5 57 x 44.5 2.5 2.5 35 74 0.28
2 x 2 57 x 57 2.5 2.5 40 97 0.4
2.5 x 1.25 76.1 x 38 2.5 2.5 35 64 0.37
2.5 x 1.5 76.1 x 44.5 2.5 2.5 35 74 0.42
2.5 x 2 76.1 x 57 2.5 2.5 40 97 0.6
2.5 x 2.5 76.1 x 76.1 2.5 2.5 50 126 0.65
3 x 1.25 88.9 x 38 2.5 2.5 35 64 0.45
3 x 1.5 88.9 x 44.5 2.5 2.5 35 74 0.55
3 x 2 88.9 x 57 2.5 2.5 40 97 0.62
3 x 2.5 88.9 x 76.1 2.5 2.5 50 126 0.7
3 x 3 88.9 x 88.9 2.5 2.5 55 149 0.95
4 x 1.5 108 x 44.5 3 2.5 35 74 0.38
4 x 2 108 x 57 3 2.5 40 97 0.48
4 x 2.5 108 x 76.1 3 2.5 50 126 0.78
4 x 3 108 x 88.9 3 2.5 55 149 0.94
4 x 4 108 x 108 3 3 75 188 1.56
6 x 2.5 159 x 76.1 3.5 2.5 50 126 0.91
6 x 3 159 x 88.9 3.5 2.5 55 149 1.4
6 x 4 159 x 108 3.5 3 75 188 1.68
6 x 6 159 x 159 3.5 3.5 95 279 3.64
8 x 3 219.1 x 88.9 4.5 2.5 55 149 1.94
8 x 4 219.1 x 108 4.5 3 75 188 2.7
8 x 6 219.1 x 159 4.5 3.5 95 279 5.69
8 x 8 219.1 x 219.1 4.5 4.5 125 379 6.4
8 x 8 219.1 x 219.1 4.5 4.5 125 379 8.55
10 x 4 267 x 108 5.5 3 75 188 3.3
10 x 6 267 x 159 5.5 3.5 95 279 6.77
10 x 8 267 x 219.1 5.5 4.5 125 379 8.25
10 x 8 267 x 219.1 5.5 4.5 125 379 11.17
10 x 10 267 x 267 5.5 5.5 155 447 15.15
10 x 10 267 x 267 5.5 5.5 155 447 15.95
12 x 6 323.9 x 159 7 3.5 95 279 6.64
12 x 8 323.9 x 219.1 7 4.5 125 379 8.4
12 x 8 323.9 x 219.1 7 4.5 125 379 13.46
12 x 10 323.9 x 267 7 5.5 155 447 15.4
12 x 10 323.9 x 267 7 5.5 155 447 17.5
12 x 12 323.9 x 323.9 7 7 185 560 19.6
12 x 12 323.9 x 323.9 7 7 185 560 22.74
14 x 8 368 x 219.1 8 4.5 125 379 8.75
14 x 10 368 x 267 8 5.5 155 447 14.55
14 x 12 368 x 323.9 8 7 185 560 18.95
14 x 14 368 x 368 8 8 200 613 24.75
16 x 10 419.1 x 267 9 5.5 155 447 15
16 x 12 419.1 x 323.9 9 7 185 560 21
16 x 14 419.1 x 368 9 8 200 613 25.1
16 x 16 419.1 x 419.1 9 9 225 680 36.25
18 x 12 457.2 x 323.9 9.5 7 185 560 19
18 x 14 457.2 x 368 9.5 8 200 613 23.1
18 x 16 457.2 x 419.1 9.5 9 225 680 35.25
18 x 18 457.2 x 457.2 9.5 9.5 250 800 51.55
20 x 14 508 x 368 11 8 200 613 26.4
20 x 16 508 x 419.1 11 9 225 680 41.1
20 x 18 508 x 457.2 11 9.5 250 800 55.8
20 x 20 508 x 508 11 11 275 880 70.4
24 x 16 610 x 419.1 13 9 225 680 44.75
24 x 18 610 x 457.2 13 9.5 250 800 59.25
24 x 20 610 x 508 13 11 275 880 69.3
24 x 24 610 x 610 13 13 300 1020 122.8
