COPPER NICKEL BUTT WELD FITTINGS
reducing tees - Ext. from DIN 86088 / EEMUA 234 in copper nickel
20 bar - EEMUA 234
STANDARD : EEMUA Pub. N° 234
Printable version
PDF version
20 bar - EEMUA 234

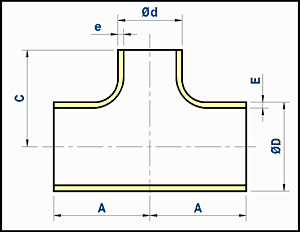

Outside diameter of pipe Wall Centre Theoretical
ØD x Ød ØD x Ød thickness to face weight
nominal
inch 		actual
mm 		E
mm 		e
mm 		A
mm 		C
mm
Kg/piece

1 x 0.75 30 x 25 2.5 2 38 38 0.17
1.25 x 0.75 38 x 25 2.5 2 48 48 0.28
1.25 x 1 38 x 30 2.5 2.5 48 48 0.28
1.5 x 0.75 44.5 x 25 2.5 2 57 57 0.37
1.5 x 1 44.5 x 30 2.5 2.5 57 57 0.4
1.5 x 1.25 44.5 x 38 2.5 2.5 57 57 0.41
2 x 1 57 x 30 2.5 2.5 64 51 0.51
2 x 1.25 57 x 38 2.5 2.5 64 57 0.54
2 x 1.5 57 x 44.5 2.5 2.5 64 60 0.55
2.5 x 1.25 76.1 x 38 2.5 2.5 76 64 0.83
2.5 x 1.5 76.1 x 44.5 2.5 2.5 76 67 0.84
2.5 x 2 76.1 x 57 2.5 2.5 76 70 0.85
3 x 1.5 88.9 x 44.5 2.5 2.5 86 73 1.10
3 x 2 88.9 x 57 2.5 2.5 86 76 1.12
3 x 2.5 88.9 x 76.1 2.5 2.5 86 83 1.15
4 x 2 108 x 57 3 2.5 105 89 1.9
4 x 2.5 108 x 76.1 3 2.5 105 95 1.92
4 x 3 108 x 88.9 3 2.5 105 98 1.95
6 x 2.5 159 x 76.1 3.5 2.5 143 121 4.6
6 x 3 159 x 88.9 3.5 2.5 143 124 4.65
6 x 4 159 x 108 3.5 3 143 130 4.72
8 x 3 219.1 x 88.9 4.5 2.5 178 152 18.7
8 x 4 219.1 x 108 4.5 3 178 156 19
8 x 6 219.1 x 159 4.5 3.5 178 168 19.1
10 x 4 267 x 108 5.5 3 216 184 26.4
10 x 6 267 x 159 5.5 3.5 216 194 26.6
10 x 8 267 x 219.1 5.5 4.5 216 203 26.75
12 x 6 323.9 x 159 7 3.5 254 219 49
12 x 8 323.9 x 219.1 7 4.5 254 229 50.4
12 x 10 323.9 x 267 7 5.5 254 241 51.8
14 x 8 368 x 219.1 8 4.5 279 248 72.35
14 x 10 368 x 267 8 5.5 279 257 73.5
14 x 12 368 x 323.9 8 7 279 270 75.7
16 x 10 419.1 x 267 9 5.5 305 283 115.2
16 x 12 419.1 x 323.9 9 7 305 295 117.5
16 x 14 419.1 x 368 9 8 305 305 120.2
18 x 12 457.2 x 323.9 9.5 7 343 321 150
18 x 14 457.2 x 368 9.5 8 343 330 152.35
18 x 16 457.2 x 419.1 9.5 9 343 330 154.25
20 x 14 508 x 368 11 8 381 356 209.65
20 x 16 508 x 419.1 11 9 381 356 212.5
20 x 18 508 x 457.2 11 9.5 381 368 217.8
24 x 16 610 x 419.1 13 9 432 406 307.4
24 x 18 610 x 457.2 13 9.5 432 419 311.6
24 x 20 610 x 508 13 11 432 432 316.1
28 x 18 711 x 457.2 15 9.5 521 470 493.25
28 x 20 711 x 508 15 11 521 483 497.75
28 x 24 711 x 610 15 13 521 508 512.4
32 x 20 813 x 508 17 11 597 533 623.3
32 x 24 813 x 610 17 13 597 559 638.2
32 x 28 813 x 711 17 15 597 572 653.3
36 x 24 914 x 610 19 13 673 610 887
36 x 28 914 x 711 19 15 673 622 901.45
36 x 32 914 x 813 19 17 673 648 924.75
