COPPER NICKEL BUTT WELD FITTINGS

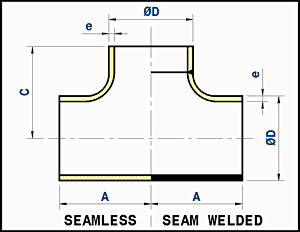

equal tees - DIN 86088 / EEMUA 234 in copper nickel
20 bar - EEMUA 234
STANDARD : EEMUA Pub. N 234
Printable version
PDF version
20 bar - EEMUA 234

Outside diameter of pipe Wall Theoretical
ØD thickness A C weight
nominal
inch
actual
mm
e
mm

mm

mm

Kg/piece

1 30 2.5 38 38 0.18
1.25 38 2.5 48 48 0.29
1.5 44.5 2.5 57 57 0.43
2 57 2.5 64 64 0.57
2.5 76 2.5 76 76 0.88
3 89 2.5 86 86 1.16
4 108 3 105 105 2.09
6 159 3.5 143 143 4.74
8 219 4.5 178 178 19.1
10 267 5.5 216 216 30.4
12 324 7 254 254 55.1
14 368 8 279 279 78.8
16 419 9 305 305 124
18 457 9.5 343 343 160.65
20 508 11 381 381 226.9
24 610 13 432 432 329.2
28 711 15 521 521 533.75
32 813 17 597 597 687.7
36 914 19 673 673 973.4
