COPPER NICKEL BUTT WELD FITTINGS
eccentric reducers - Ext. from DIN 86089 / EEMUA 234 in copper nickel
20 bar - EEMUA 234
STANDARD : EEMUA Pub. N° 234
Printable version
PDF version
20 bar - EEMUA 234

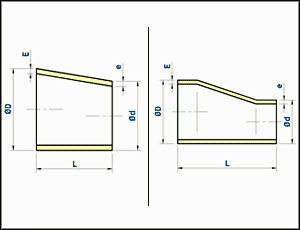

Outside diameter Wall Length Theoretical
ØD x Ød ØD x Ød thickness weight
nominal
inch 		actual
mm 		E
mm 		e
mm 		L
mm
Kg/piece

1 x 0.75 30 x 25 2.5 2 51 0.09
1.25 x 0.75 38 x 25 2.5 2 51 0.10
1.25 x 1 38 x 30 2.5 2.5 51 0.11
1.5 x 0.75 44.5 x 25 2.5 2 64 0.14
1.5 x 1 44.5 x 30 2.5 2.5 64 0.15
1.5 x 1.25 44.5 x 38 2.5 2.5 64 0.17
2 x 1 57 x 30 2.5 2.5 76 0.21
2 x 1.25 57 x 38 2.5 2.5 76 0.23
2 x 1.5 57 x 44.5 2.5 2.5 76 0.25
2.5 x 1.25 76.1 x 38 2.5 2.5 89 0.34
2.5 x 1.5 76.1 x 44.5 2.5 2.5 89 0.36
2.5 x 2 76.1 x 57 2.5 2.5 89 0.40
3 x 1.5 88.9 x 44.5 2.5 2.5 89 0.40
3 x 2 88.9 x 57 2.5 2.5 89 0.44
3 x 2.5 88.9 x 76.1 2.5 2.5 89 0.50
4 x 2 108 x 57 3 2.5 102 0.68
4 x 2.5 108 x 76.1 3 2.5 102 0.76
4 x 3 108 x 88.9 3 2.5 102 0.82
6 x 2 159 x 57 3.5 2.5 140 1.50
6 x 2.5 159 x 76.1 3.5 2.5 140 1.56
6 x 3 159 x 88.9 3.5 2.5 140 1.65
6 x 4 159 x 108 3.5 3 140 1.78
8 x 2.5 219.1 x 76.1 4.5 2.5 152 2.74
8 x 3 219.1 x 88.9 4.5 2.5 152 2.87
8 x 4 219.1 x 108 4.5 3 152 3.05
8 x 6 219.1 x 159 4.5 3.5 152 3.54
10 x 4 267 x 108 5.5 3 178 5.00
10 x 6 267 x 159 5.5 3.5 178 5.70
10 x 8 267 x 219.1 5.5 4.5 178 6.53
12 x 6 323.9 x 159 7 3.5 203 9.35
12 x 8 323.9 x 219.1 7 4.5 203 10.55
12 x 10 323.9 x 267 7 5.5 203 11.52
14 x 8 368 x 219.1 8 4.5 330 21.16
14 x 10 368 x 267 8 5.5 330 22.95
14 x 12 368 x 323.9 8 7 330 25.06
16 x 10 419.1 x 267 9 5.5 356 30.05
16 x 12 419.1 x 323.9 9 7 356 32.62
16 x 14 419.1 x 368 9 8 356 35.60
18 x 12 457.2 x 323.9 9.5 7 381 38.85
18 x 14 457.2 x 368 9.5 8 381 41.10
18 x 16 457.2 x 419.1 9.5 9 381 43.70
20 x 14 508 x 368 11 8 508 67.38
20 x 16 508 x 419.1 11 9 508 71.39
20 x 18 508 x 457.2 11 9.5 508 74.38
24 x 16 610 x 419.1 13 9 508 93.46
24 x 18 610 x 457.2 13 9.5 508 96.99
24 x 20 610 x 508 13 11 508 101.70
28 x 18 711 x 457.2 15 9.5 610 146.97
28 x 20 711 x 508 15 11 610 153.52
28 x 24 711 x 610 15 13 610 166.62
32 x 24 813 x 610 17 13 610 203.26
32 x 28 813 x 711 17 15 610 217.96
36 x 24 914 x 610 19 13 610 336.45
36 x 28 914 x 711 19 15 610 352.89
36 x 32 914 x 813 19 17 610 369.49
