COPPER NICKEL BUTT WELD FITTINGS

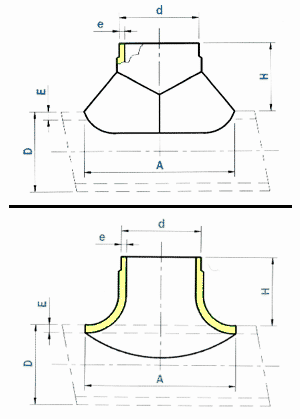

saddles - DIN 86087 / EEMUA 234 in copper nickel
16 bar - EEMUA 234
STANDARD : EEMUA Pub. N° 234
Printable version
PDF version
16 bar - EEMUA 234

Outside diameter of pipe Wall Centre Theoretical
ØD x Ød ØD x Ød thickness to face weight
nominal
inch 		actual
mm 		E
mm 		e
mm 		H
mm 		A
mm
Kg/piece

1.25 x 1.25 38 x 38 2.5 2.5 35 64 0.18
1.5 x 1.25 44.5 x 38 2.5 2.5 35 64 0.23
1.5 x 1.5 44.5 x 44.5 2.5 2.5 35 74 0.25
2 x 1.25 57 x 38 2.5 2.5 35 64 0.25
2 x 1.5 57 x 44.5 2.5 2.5 35 74 0.28
2 x 2 57 x 57 2.5 2.5 40 97 0.40
2.5 x 1.25 76.1 x 38 2.5 2.5 35 64 0.37
2.5 x 1.5 76.1 x 44.5 2.5 2.5 35 74 0.42
2.5 x 2 76.1 x 57 2.5 2.5 40 97 0.60
2.5 x 2.5 76.1 x 76.1 2.5 2.5 50 126 0.65
3 x 1.25 88.9 x 38 2.5 2.5 35 64 0.45
3 x 1.5 88.9 x 44.5 2.5 2.5 35 74 0.55
3 x 2 88.9 x 57 2.5 2.5 40 97 0.62
3 x 2.5 88.9 x 76.1 2.5 2.5 50 126 0.70
3 x 3 88.9 x 88.9 2.5 2.5 55 149 0.95
4 x 1.5 108 x 44.5 3 2.5 35 74 0.38
4 x 2 108 x 57 3 2.5 40 97 0.48
4 x 2.5 108 x 76.1 3 2.5 50 126 0.78
4 x 3 108 x 88.9 3 2.5 55 149 0.94
4 x 4 108 x 108 3 3 75 188 1.56
6 x 2.5 159 x 76.1 3 2.5 50 126 0.78
6 x 3 159 x 88.9 3 2.5 55 149 1.20
6 x 4 159 x 108 3 3 75 188 1.44
6 x 6 159 x 159 3 3 95 279 3.12
8 x 3 219.1 x 88.9 4 2.5 55 149 1.73
8 x 4 219.1 x 108 4 3 75 188 2.40
8 x 6 219.1 x 159 4 3 95 279 5.06
8 x 8 219.1 x 219.1 4 4 125 379 5.70
8 x 8 219.1 x 219.1 4 4 125 379 7.60
10 x 4 267 x 108 4.5 3 75 188 2.70
10 x 6 267 x 159 4.5 3 95 279 5.54
10 x 8 267 x 219.1 4.5 4 125 379 6.75
10 x 8 267 x 219.1 4.5 4 125 379 9.14
10 x 10 267 x 267 4.5 4.5 155 447 12.40
10 x 10 267 x 267 4.5 4.5 155 447 13.05
12 x 6 323.9 x 159 5.5 3 95 279 5.22
12 x 8 323.9 x 219.1 5.5 4 125 379 6.60
12 x 8 323.9 x 219.1 5.5 4 125 379 10.58
12 x 10 323.9 x 267 5.5 4.5 155 447 12.10
12 x 10 323.9 x 267 5.5 4.5 155 447 13.75
12 x 12 323.9 x 323.9 5.5 5.5 185 560 15.40
12 x 12 323.9 x 323.9 5.5 5.5 185 560 17.87
14 x 8 368 x 219.1 6.5 4 125 379 7.10
14 x 10 368 x 267 6.5 4.5 155 447 11.80
14 x 12 368 x 323.9 6.5 5.5 185 560 15.40
14 x 14 368 x 368 6.5 6.5 200 613 20.10
16 x 10 419.1 x 267 7 4.5 155 447 11.65
16 x 12 419.1 x 323.9 7 5.5 185 560 16.35
16 x 14 419.1 x 368 7 6.5 200 613 19.50
16 x 16 419.1 x 419.1 7 7 225 680 28.20
18 x 12 457.2 x 323.9 8 5.5 185 560 16.00
18 x 14 457.2 x 368 8 6.5 200 613 19.45
18 x 16 457.2 x 419.1 8 7 225 680 29.70
18 x 18 457.2 x 457.2 8 8 250 800 43.40
20 x 14 508 x 368 8.5 6.5 200 613 20.40
20 x 16 508 x 419.1 8.5 7 225 680 31.75
20 x 18 508 x 457.2 8.5 8 250 800 43.10
20 x 20 508 x 508 8.5 8.5 275 880 54.40
24 x 16 610 x 419.1 10.5 7 225 680 36.15
24 x 18 610 x 457.2 10.5 8 250 800 47.85
24 x 20 610 x 508 10.5 8.5 275 880 56.00
24 x 24 610 x 610 10.5 10.5 300 1020 99.20
28 x 18 711 x 457.2 12 8 250 800 77.70
28 x 20 711 x 508 12 8.5 275 880 105.10
28 x 24 711 x 610 12 10.5 300 1020 137.15
28 x 28 711 x 711 12 12 360 1225 182.85
32 x 20 813 x 508 13.5 8.5 275 880 118.10
32 x 24 813 x 610 13.5 10.5 300 1020 163.15
32 x 28 813 x 711 13.5 12.5 360 1225 208.15
32 x 32 813 x 813 13.5 13.5 410 1400 225.00
36 x 24 914 x 610 15.5 10.5 300 1020 206.70
36 x 28 914 x 711 15.5 12.5 360 1225 246.85
36 x 32 914 x 813 15.5 13.5 410 1400 294.45
36 x 36 914 x 914 15.5 15.5 460 1550 357.00
