COPPER NICKEL BUTT WELD FITTINGS

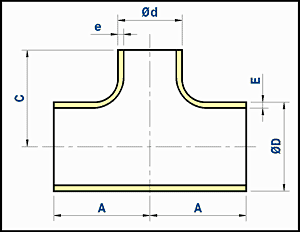

reducing tees - Ext. from DIN 86088 / EEMUA 234 in copper nickel
16 bar - EEMUA 234
STANDARD : EEMUA Pub. N° 234
Printable version
PDF version
16 bar - EEMUA 234

Outside diameter of pipe Wall Centre Theoretical
ØD x Ød ØD x Ød thickness to face weight
nominal
inch 		actual
mm 		E
mm 		e
mm 		A
mm 		C
mm
Kg/piece

1 x 0.75 30 x 25 2.5 2 38 38 0.17
1.25 x 0.75 38 x 25 2.5 2 48 48 0.28
1.25 x 1 38 x 30 2.5 2.5 48 48 0.28
1.5 x 0.75 44.5 x 25 2.5 2 57 57 0.37
1.5 x 1 44.5 x 30 2.5 2.5 57 57 0.40
1.5 x 1.25 44.5 x 38 2.5 2.5 57 57 0.41
2 x 1 57 x 30 2.5 2.5 64 51 0.51
2 x 1.25 57 x 38 2.5 2.5 64 57 0.54
2 x 1.5 57 x 44.5 2.5 2.5 64 60 0.55
2.5 x 1.25 76.1 x 38 2.5 2.5 76 64 0.83
2.5 x 1.5 76.1 x 44.5 2.5 2.5 76 67 0.84
2.5 x 2 76.1 x 57 2.5 2.5 76 70 0.85
3 x 1.5 88.9 x 44.5 2.5 2.5 86 73 1.1
3 x 2 88.9 x 57 2.5 2.5 86 76 1.12
3 x 2.5 88.9 x 76.1 2.5 2.5 86 83 1.15
4 x 2 108 x 57 3 2.5 105 89 1.9
4 x 2.5 108 x 76.1 3 2.5 105 95 1.92
4 x 3 108 x 88.9 3 2.5 105 98 1.95
6 x 2.5 159 x 76.1 3 2.5 143 121 3.95
6 x 3 159 x 88.9 3 2.5 143 124 4
6 x 4 159 x 108 3 3 143 130 4.05
8 x 3 219.1 x 88.9 4 2.5 178 152 16.6
8 x 4 219.1 x 108 4 3 178 156 16.9
8 x 6 219.1 x 159 4 3 178 168 17
10 x 4 267 x 108 4.5 3 216 184 21.6
10 x 6 267 x 159 4.5 3 216 194 21.75
10 x 8 267 x 219.1 4.5 4 216 203 21.9
12 x 6 323.9 x 159 5.5 3 254 219 38.5
12 x 8 323.9 x 219.1 5.5 4 254 229 39.6
12 x 10 323.9 x 267 5.5 4.5 254 241 40.7
14 x 8 368 x 219.1 6.5 4 279 248 58.8
14 x 10 368 x 267 6.5 4.5 279 257 59.7
14 x 12 368 x 323.9 6.5 5.5 279 270 61.5
16 x 10 419.1 x 267 7 4.5 305 283 89.6
16 x 12 419.1 x 323.9 7 5.5 305 295 91.4
16 x 14 419.1 x 368 7 6.5 305 305 93.5
18 x 12 457.2 x 323.9 8 5.5 343 321 126.3
18 x 14 457.2 x 368 8 6.5 343 330 128.3
18 x 16 457.2 x 419.1 8 7 343 330 129.9
20 x 14 508 x 368 8.5 6.5 381 356 162
20 x 16 508 x 419.1 8.5 7 381 356 164.2
20 x 18 508 x 457.2 8.5 8 381 368 168.3
24 x 16 610 x 419.1 10.5 7 432 406 248.3
24 x 18 610 x 457.2 10.5 8 432 419 251.7
24 x 20 610 x 508 10.5 8.5 432 432 255.3
28 x 18 711 x 457.2 12 8 521 470 394.6
28 x 20 711 x 508 12 8.5 521 483 398.2
28 x 24 711 x 610 12 10.5 521 508 409.9
32 x 20 813 x 508 13.5 8.5 597 533 495
32 x 24 813 x 610 13.5 10.5 597 559 506.8
32 x 28 813 x 711 13.5 12 597 572 518.8
36 x 24 914 x 610 15.5 10.5 673 610 723.6
36 x 28 914 x 711 15.5 12 673 622 735.4
36 x 32 914 x 813 15.5 13.5 673 648 754.4
