COPPER NICKEL BUTT WELD FITTINGS

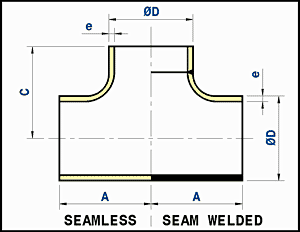

equal tees - DIN 86088 / EEMUA 234 in copper nickel
16 bar - EEMUA 234
STANDARD : EEMUA Pub. N 234
Printable version
PDF version
16 bar - EEMUA 234

Outside diameter of pipe Wall Theoretical
ØD thickness A C weight
nominal
inch
actual
mm
e
mm

mm

mm

Kg/piece

1 30 2.5 38 38 0.18
1.25 38 2.5 48 48 0.29
1.5 44.5 2.5 57 57 0.43
2 57 2.5 64 64 0.57
2.5 76.1 2.5 76 76 0.88
3 88.9 2.5 86 86 1.16
4 108 3 105 105 2.09
6 159 3 143 143 4.07
8 219.1 4 178 178 17
10 267 4.5 216 216 24.9
12 323.9 5.5 254 254 43.3
14 368 6.5 279 279 64.05
16 419.1 7 305 305 96.4
18 457.2 8 343 343 135.3
20 508 8.5 381 381 175.3
24 610 10.5 432 432 265.9
28 711 12.0 521 521 427
32 813 13.5 597 597 546.1
36 914 15.5 673 673 794.1
