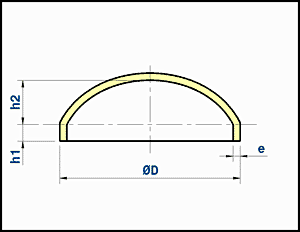

COPPER NICKEL BUTT WELD FITTINGS
end caps - DIN 28011 / EEMUA 234 in copper nickel
16 bar - EEMUA 234
STANDARD : EEMUA Pub. N° 234
Printable version
PDF version
16 bar - EEMUA 234

Outside diameter of pipe Wall Heigh Theoretical
ØD thickness weight
nominal
inch 		actual
mm 		e
mm 		h1 + h2
mm
Kg/piece

1.5 44.5 2.5 19.6 0.13
2 57 2.5 22 0.19
2.5 76.1 2.5 25.7 0.31
3 88.9 2.5 28.2 0.40
4 108 3 31.7 0.75
6 159 3 41 1.50
8 219.1 4 55 2.75
10 267 4.5 69 4.9
12 323.9 5.5 80 9.17
14 368 6.5 93 14.05
16 419.1 7 102 18.6
18 457.2 8 119 22.75
20 508 8.5 129 31.7
24 610 10.5 148 55.16
28 711 12 176 85.55
32 813 13.5 200 125.4
36 914 15.5 221 175.40
