COPPER NICKEL BUTT WELD FITTINGS
concentric reducers - DIN 86089 / EEMUA 234 in copper nickel
16 bar - EEMUA 234
STANDARD : EEMUA Pub. N° 234
Printable version
PDF version
16 bar - EEMUA 234

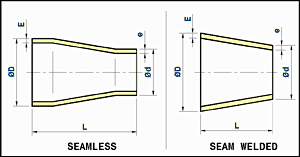

Outside diameter Wall Length Theoretical
ØD x Ød ØD x Ød thickness weight
nominal
inch 		actual
mm 		E
mm 		e
mm 		L
mm
Kg/piece

1 x 0.75 30 x 25 2.5 2 51 0.09
1.25 x 0.75 38 x 25 2.5 2 51 0.1
1.25 x 1 38 x 30 2.5 2.5 51 0.11
1.5 x 0.75 44.5 x 25 2.5 2 64 0.14
1.5 x 1 44.5 x 30 2.5 2.5 64 0.15
1.5 x 1.25 44.5 x 38 2.5 2.5 64 0.17
2 x 1 57 x 30 2.5 2.5 76 0.21
2 x 1.25 57 x 38 2.5 2.5 76 0.23
2 x 1.5 57 x 44.5 2.5 2.5 76 0.25
2.5 x 1.25 76.1 x 38 2.5 2.5 89 0.34
2.5 x 1.5 76.1 x 44.5 2.5 2.5 89 0.36
2.5 x 2 76.1 x 57 2.5 2.5 89 0.4
3 x 1.5 88.9 x 44.5 2.5 2.5 89 0.4
3 x 2 88.9 x 57 2.5 2.5 89 0.44
3 x 2.5 88.9 x 76.1 2.5 2.5 89 0.5
4 x 2 108 x 57 3 2.5 102 0.68
4 x 2.5 108 x 76.1 3 2.5 102 0.76
4 x 3 108 x 88.9 3 2.5 102 0.82
6 x 2 159 x 57 3 2.5 140 1.3
6 x 2.5 159 x 76.1 3 2.5 140 1.35
6 x 3 159 x 88.9 3 2.5 140 1.42
6 x 4 159 x 108 3 3 140 1.54
8 x 2.5 219.1 x 76.1 4 2.5 152 2.45
8 x 3 219.1 x 88.9 4 2.5 152 2.55
8 x 4 219.1 x 108 4 3 152 2.72
8 x 6 219.1 x 159 4 3 152 3.16
10 x 4 267 x 108 4.5 3 178 4.11
10 x 6 267 x 159 4.5 3 178 4.69
10 x 8 267 x 219.1 4.5 4 178 5.36
12 x 6 323.9 x 159 5.5 3 203 7.39
12 x 8 323.9 x 219.1 5.5 4 203 8.33
12 x 10 323.9 x 267 5.5 4.5 203 9.09
14 x 8 368 x 219.1 6.5 4 330 17.28
14 x 10 368 x 267 6.5 4.5 330 18.73
14 x 12 368 x 323.9 6.5 5.5 330 20.44
16 x 10 419.1 x 267 7 4.5 356 23.51
16 x 12 419.1 x 323.9 7 5.5 356 25.51
16 x 14 419.1 x 368 7 6.5 356 27.04
18 x 12 457.2 x 323.9 8 5.5 381 32.72
18 x 14 457.2 x 368 8 6.5 381 34.61
18 x 16 457.2 x 419.1 8 7 381 36.80
20 x 14 508 x 368 8.5 6.5 508 52.07
20 x 16 508 x 419.1 8.5 7 508 55.17
20 x 18 508 x 457.2 8.5 8 508 57.48
24 x 16 610 x 419.1 10.5 7 508 75.49
24 x 18 610 x 457.2 10.5 8 508 78.34
24 x 20 610 x 508 10.5 8.5 508 82.15
28 x 18 711 x 457.2 12 8 610 117.58
28 x 20 711 x 508 12 8.5 610 122.82
28 x 24 711 x 610 12 10.5 610 133.30
32 x 24 813 x 610 13.5 10.5 610 161.42
32 x 28 813 x 711 13.5 12 610 173.09
36 x 24 914 x 610 15.5 10.5 610 274.48
36 x 28 914 x 711 15.5 12 610 287.89
36 x 32 914 x 813 15.5 13.5 610 301.43
