| COPPER NICKEL PIPES |
| european standards for copper nickel pipes |
| 16 bar - EEMUA 234 UNS 7060X |
| |
|

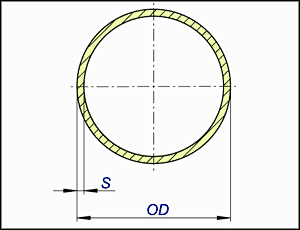

Outside diameter of pipe ØD |
16 bar | |||
|
Wall thickness |
Theoretical weight |
|||
| nominal | actual | actual | ||
| inch | ND | mm | mm | Kg/m |
| 0.125 | 10 | 1.0 | 0.26 | |
| 0.25 | 12 | 1.0 | 0.31 | |
| 0.38 | 10 | 16 | 2.0 | 0.79 |
| 0.5 | 15 | 20 | 2.0 | 1.01 |
| 0.75 | 20 | 25 | 2.0 | 1.30 |
| 1 | 25 | 30 | 2.5 | 1.93 |
| 1.25 | 32 | 38 | 2.5 | 2.50 |
| 1.5 | 40 | 44.5 | 2.5 | 2.95 |
| 2 | 50 | 57 | 2.5 | 3.83 |
| 2.5 | 65 | 76.1 | 2.5 | 5.17 |
| 3 | 80 | 88.9 | 2.5 | 6.07 |
| 4 | 100 | 108 | 3.0 | 8.85 |
| 5 | 125 | 133 | 3.0 | 10.95 |
| 6 | 150 | 159 | 3.0 | 13.14 |
| 7 | 175 | 193.7 | 3.0 | 16.07 |
| 8 | 200 | 219.1 | 4.0 | 24.17 |
| 10 | 250 | 267 | 4.5 | 33.18 |
| 12 | 300 | 323.9 | 5.5 | 49.18 |
| 14 | 350 | 368 | 6.5 | 65.99 |
| 16 | 400 | 419.1 | 7.0 | 81.00 |
| 18 | 450 | 457.2 | 8.0 | 100.93 |
| 20 | 500 | 508 | 8.5 | 119.24 |
| 24 | 600 | 610 | 10.5 | 176.79 |
| 28 | 700 | 711 | 12.0 | 235.58 |
| 32 | 800 | 813 | 13.5 | 303.14 |
| 36 | 900 | 914 | 15.5 | 391.14 |
