COPPER NICKEL BUTT WELD FITTINGS
concentric reducers - DIN 86089 / EEMUA 234 in copper nickel
14 bar - DIN 86089
STANDARD : DIN 86089
Printable version
PDF version
14 bar - DIN 86089

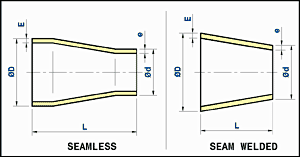

Outside diameter Wall Length Theoretical
ØD x Ød ØD x Ød thickness weight
nominal
inch 		actual
mm 		E
mm 		e
mm 		L
mm
Kg/piece

3 x 1.25 88.9 x 38 2.5 1.5 90 0.33
3 x 1.5 88.9 x 44.5 2.5 1.5 90 0.35
3 x 2 88.9 x 57 2.5 1.5 90 0.38
3 x 2.5 88.9 x 76.1 2.5 2 90 0.48
4 x 3 108 x 88.9 2.5 2.5 100 0.61
5 x 3 133 x 88.9 3 2.5 140 1.13
6 x 3 159 x 88.9 3 2.5 150 1.42
6 x 5 159 x 133 3 3 150 1.81
7 x 3 193.7 x 88.9 3.5 2.5 155 1.94
7 x 5 193.7 x 133 3.5 3 155 2.39
7 x 6 193.7 x 159 3.5 3 155 2.6
8 x 5 219.1 x 133 3.5 3 155 3.03
8 x 6 219.1 x 159 3.5 3 155 3.2
8 x 7 219.1 x 193.7 3.5 3.5 155 3.42
10 x 5 267 x 133 4 3 210 4.4
10 x 6 267 x 159 4 3 210 4.65
10 x 7 267 x 193.7 4 3.5 210 5
10 x 8 267 x 219.1 4 3.5 210 5.65
12 x 5 323.9 x 133 5 3 210 6.62
12 x 6 323.9 x 159 5 3 210 7
12 x 7 323.9 x 193.7 5 3.5 210 7.52
12 x 8 323.9 x 219.1 5 3.5 210 7.9
12 x 10 323.9 x 267 5 4 210 8.6
14 x 6 368 x 159 5.5 3 300 12.03
14 x 7 368 x 193.7 5.5 3 300 12.84
14 x 8 368 x 219.1 5.5 3.5 300 13.42
14 x 10 368 x 267 5.5 4 300 14.53
14 x 12 368 x 323.9 5.5 5 300 15.85
16 x 7 419.1 x 193.7 6 3.5 325 16.56
16 x 8 419.1 x 219.1 6 3.5 325 17.25
16 x 10 419.1 x 267 6 4 325 18.57
16 x 12 419.1 x 323.9 6 5 325 20.13
16 x 14 419.1 x 368 6 5.5 325 21.33
18 x 8 457.2 x 219.1 6 3.5 350 19.7
18 x 10 457.2 x 267 6 4 350 21.1
18 x 12 457.2 x 323.9 6 5 350 22.8
18 x 14 457.2 x 368 6 5.5 350 24.1
18 x 16 457.2 x 419.1 6 6 350 25.8
20 x 10 508 x 267 6.5 4 375 26.1
20 x 12 508 x 323.9 6.5 5 375 28.05
20 x 14 508 x 368 6.5 5.5 375 29.6
20 x 16 508 x 419.1 6.5 6 375 31.3
20 x 18 508 x 457.2 6.5 6 375 32.6
24 x 14 610 x 368 8 5.5 400 43.5
24 x 16 610 x 419.1 8 6 400 45.8
24 x 18 610 x 457.2 8 6 400 47.5
24 x 20 610 x 508 8 6.5 400 49.8
