| COPPER NICKEL BUTT WELD FITTINGS |
| equal tees - DIN 86088 / EEMUA 234 in copper nickel |
| 14 bar - DIN 86088 |
| STANDARD : DIN 86088 |
| |

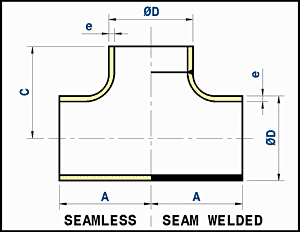

| Outside diameter of pipe | Wall | Theoretical | |||
| ØD | thickness | A | C | weight | |
|
nominal inch |
actual mm |
e mm |
mm |
mm |
Kg/piece |
| 3 | 89 | 2.5 | 86 | 86 | 2.17 |
| 5 | 133 | 2.5 | 124 | 124 | 4.70 |
| 5 | 133 | 3 | 124 | 124 | 5.57 |
| 6 | 159 | 3 | 143 | 143 | 6.28 |
| 7 | 194 | 3 | 157 | 157 | 6.84 |
| 8 | 219 | 3.5 | 178 | 178 | 14.63 |
| 10 | 267 | 4 | 216 | 216 | 22.10 |
| 12 | 324 | 5 | 254 | 254 | 39.40 |
| 14 | 368 | 5.5 | 279 | 279 | 54.20 |
| 16 | 419 | 6 | 305 | 305 | 82.65 |
| 18 | 457 | 6 | 343 | 343 | 101.50 |
| 20 | 508 | 6.5 | 381 | 381 | 134.10 |
| 24 | 610 | 8 | 432 | 432 | 202.60 |
