COPPER NICKEL BUTT WELD FITTINGS
saddles - DIN 86087 / EEMUA 234 in copper nickel
14 bar - DIN 86087
STANDARD : DIN 86087
Printable version
PDF version
14 bar - DIN 86087

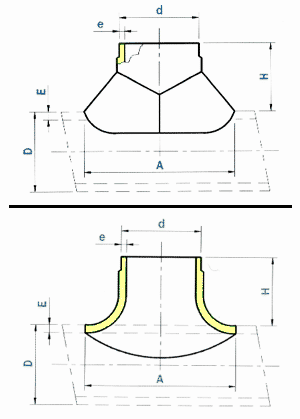

Outside diameter of pipe Wall Centre Theoretical
ØD x Ød ØD x Ød thickness to face weight
nominal
inch 		actual
mm 		E
mm 		e
mm 		H
mm 		A
mm
Kg/piece

3 x 3 88.9 x 88.9 2.5 2.5 55 149 0.95
5 x 3 133 x 88.9 3 2.5 55 149 1.2
5 x 5 133 x 133 3 3 85 233 2.04
6 x 3 159 x 88.9 3 2.5 55 149 1.2
6 x 5 159 x 133 3 3 85 233 2.4
6 x 6 159 x 159 3 3 95 279 3.12
7 x 3 193.7 x 88.9 3.5 2.5 55 149 1.82
7 x 5 193.7 x 133 3.5 3 85 233 2.66
7 x 6 193.7 x 159 3.5 3 95 279 3.5
7 x 7 193.7 x 193.7 3.5 3.5 110 334 4.48
8 x 3 219.1 x 88.9 3.5 2.5 55 149 1.52
8 x 5 219.1 x 133 3.5 3 85 233 3.15
8 x 6 219.1 x 159 3.5 3 95 279 4.43
8 x 7 219.1 x 193.7 3.5 3.5 110 334 5.25
8 x 8 219.1 x 219.1 3.5 3.5 125 379 6.65
10 x 5 267 x 133 4 3 85 233 3.06
10 x 6 267 x 159 4 3 95 279 4.93
10 x 7 267 x 193.7 4 3.5 110 334 6.27
10 x 8 267 x 219.1 4 3.5 125 379 8.13
10 x 10 267 x 267 4 4 155 447 11.6
12 x 5 323.9 x 133 5 3 85 233 3.25
12 x 6 323.9 x 159 5 3 95 279 4.75
12 x 7 323.9 x 193.7 5 3.5 110 334 6.2
12 x 8 323.9 x 219.1 5 3.5 125 379 9.6
12 x 10 323.9 x 267 5 4 155 447 12.5
12 x 12 323.9 x 323.9 5 5 185 560 16.25
14 x 6 368 x 159 5.5 3 95 279 5.3
14 x 7 368 x 193.7 5.5 3.5 110 334 5.8
14 x 8 368 x 219.1 5.5 3.5 125 379 6
14 x 10 368 x 267 5.5 4 155 447 10
14 x 12 368 x 323.9 5.5 5 185 560 13
14 x 14 368 x 368 5.5 5.5 200 613 17
16 x 8 419.1 x 219.1 6 3.5 125 379 6.5
16 x 10 419.1 x 267 6 4 155 447 10
16 x 12 419.1 x 323.9 6 5 185 560 14
16 x 14 419.1 x 368 6 5.5 200 613 18
16 x 16 419.1 x 419.1 6 6 225 680 26
18 x 10 457.2 x 267 6 4 155 447 9.45
18 x 12 457.2 x 323.9 6 5 185 560 12
18 x 14 457.2 x 368 6 5.5 200 613 14.6
18 x 16 457.2 x 419.1 6 6 225 680 22.3
18 x 18 457.2 x 457.2 6 6 250 800 32.6
20 x 12 508 x 323.9 6.5 5 185 560 13
20 x 14 508 x 368 6.5 5.5 200 613 15.6
20 x 16 508 x 419.1 6.5 6 225 680 24.3
20 x 18 508 x 457.2 6.5 6 250 800 32.95
20 x 20 508 x 508 6.5 6.5 275 880 41.6
24 x 14 610 x 368 8 5.5 200 613 17.77
24 x 16 610 x 419.1 8 6 225 680 27.55
24 x 18 610 x 457.2 8 6 250 800 36.45
24 x 20 610 x 508 8 6.5 275 880 42.65
24 x 24 610 x 610 8 8 300 1020 75.5
